Floor Saw CF-6032

CF-6032

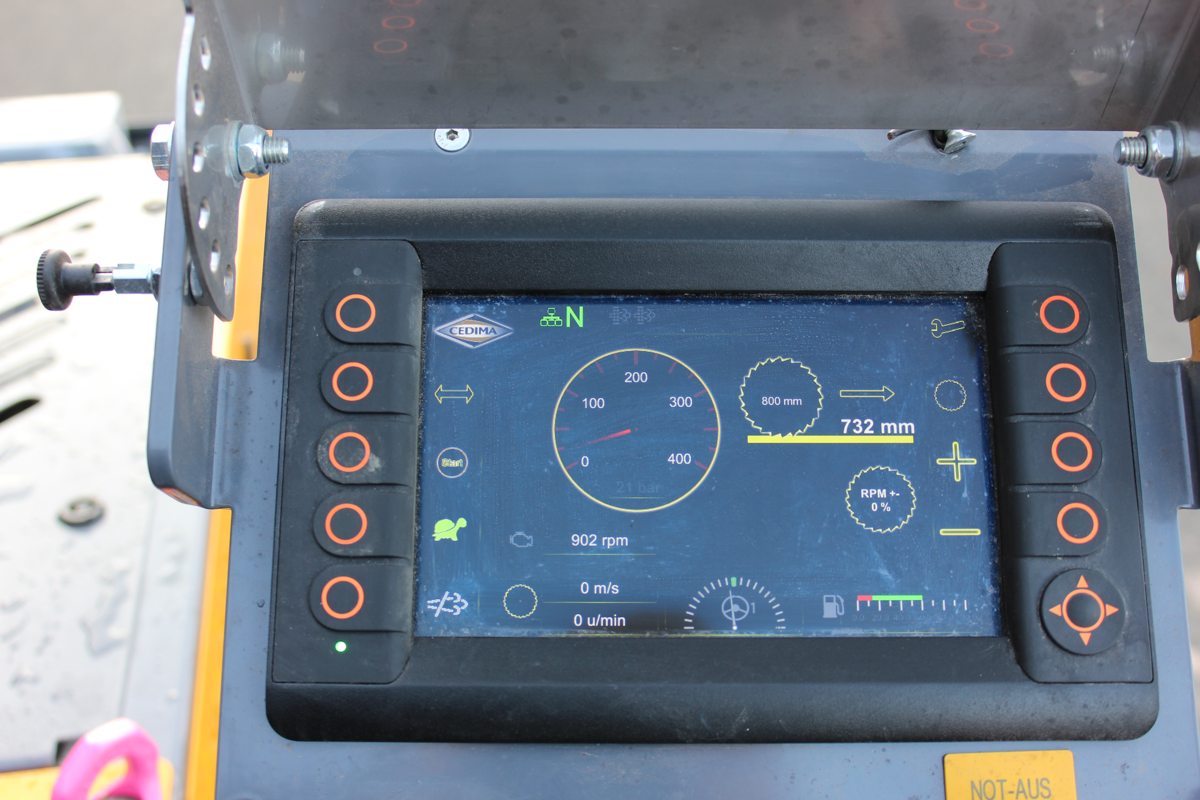

All hydraulic work functions are electronically controlled via a control panel on the driver's seat and displayed on a clear 7" colour display. The ergonomic seat and steering wheel are adjustable, thus guaranteeing the operator the optimal position to observe the cutting line at all times. A wide range of expansion options make the CF-6030 a universal powerhouse for processing concrete or asphalt traffic surfaces.A special application is the possibility of conversion for microtrenching, a technology in which a slot is milled to accommodate fiber optic cables in the street or pavement. More information can be found at Microtrenching.

Features & Characteristics

  • High-performance low-emission Stage V (EU) / Tier 4 (Final) common-rail diesel with automatic cold start
  • All-wheel drive via hydraulically driven wheel hub motors
  • Fully hydraulic drive of all work functions
  • Blade pick-up possible on the right or left
  • Infinitely variable cutting shaft speed
  • Standard additional hydraulics for driving an extraction system

Accesories

  • Suction blade guard
  • Lamp set
  • Rotating beacon
  • Longitudinal attachment kit
  • Green concrete attachment kit
  • Milling/Grooving Attachment Kit
  • Suction plant
  • Core Drill Attachment Kit

Technical specifications

  • Max. cutting depth:

    630 mm

  • max. Saw Blade Ø:

    1500 mm

  • min. Saw Blade Ø:

    300 mm

  • Cutting shaft speed:

    600 - 2800 rpm

  • Bore hole of blade:

    35 + 6 holes

  • Blade mounting:

    right or left

  • Max. mounting width:

    13 mm

  • Max. motor output:

    100.4 kW / 136.5 hp

  • net. motor output:

    100.4 kW

  • Motor type:

    Diesel

  • Motor designation:

    Doosan D34

  • Motor starter:

    Electric start

  • Cutting depth adjustment:

    Electro-hydraulic

  • Feed:

    hydraulic

  • water pump:

    Yes

  • Dimensions L/W/H (transport):

    3515 / 1320 / 1840 mm

  • Weight:

    2100 kg
