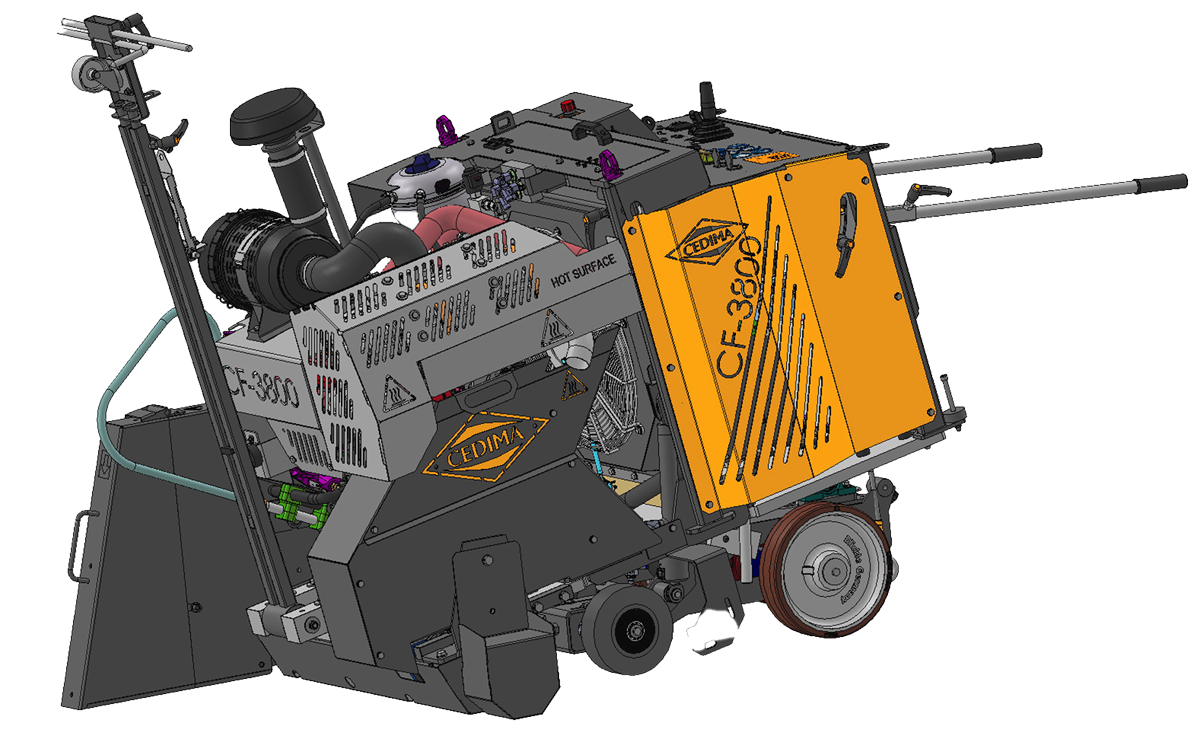

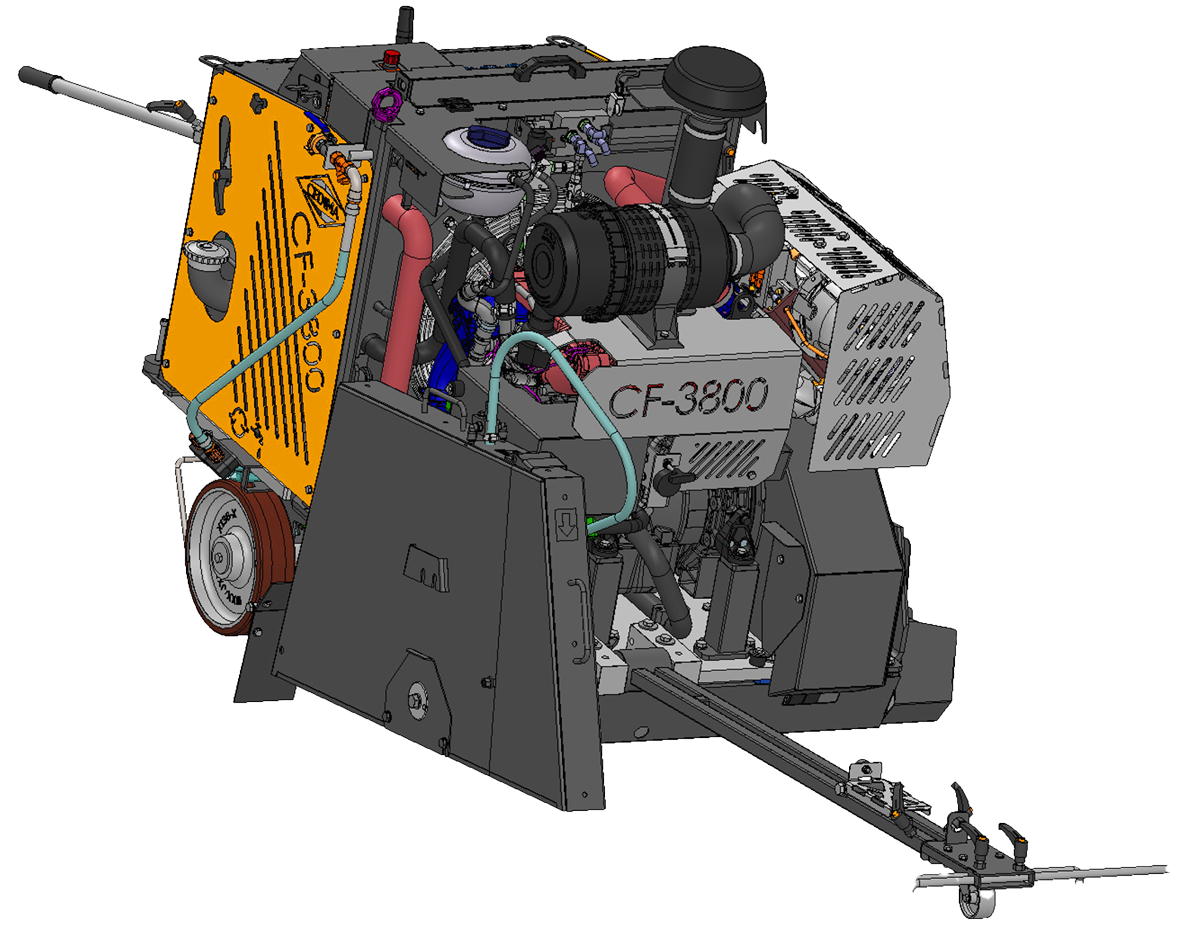

Floor Saw CF-3800

CF-3800

Floor Saw CF-3800 – Powerful and Precise Performance!

Reliable Cutting Technology for Professional Road Construction and Civil Engineering

The CEDIMA CF-3800 is a powerful, user-friendly floor saw designed for medium-duty cutting applications. Developed for professional use in road construction and civil engineering, this machine impresses with its precise cutting performance, high level of operating comfort, and robust, practical design.

Powered by a water-cooled, 3-cylinder Hatz diesel engine delivering 43.7 kW (59.4 hp), the CF-3800 complies with the EU Stage V emissions standard. This makes it well suited for demanding cutting operations and everyday use on professional construction sites.

Excellent Operating Comfort and Precise Cutting Results

The hydraulic feed system ensures smooth and convenient machine operation. The electrohydraulic cutting depth adjustment, combined with the digital cutting depth display featuring a 4.3-inch screen, enables precise and controlled cutting.

The adjustable rear axle ensures excellent straight-line stability, while the adjustable front axle allows the machine to be optimally configured for the application. The telescopic sighting guide facilitates alignment during cutting and provides good visibility of the cutting line.

Features & Characteristics

  • Cutting depth display: 4.3’ digital display
  • Good directional stability due to adjustable rear axle
  • Adjustable front axle for setting the contact pressure of the rear axle
  • EU emissions standard: Stage V
  • Fully hydraulic feed with brake
  • 4 12V sockets, 1 USB port

Technical specifications

  • Max. cutting depth:

    410 mm

  • max. Saw Blade Ø:

    1000 mm

  • Cutting shaft speed:

    variable

  • Bore hole of blade:

    35 mm + 6-hole

  • Blade mounting:

    right or left

  • Max. mounting width:

    20 mm

  • Max. motor output:

    43,7 kW

  • net. motor output:

    43,7 Kw

  • Motor type:

    Diesel

  • Motor designation:

    Hatz 3H50

  • Motor starter:

    Electric start

  • Cutting depth adjustment:

    Electro-hydraulic

  • Feed:

    hydraulic

  • water pump:

    Yes

  • Dimensions L/W/H (transport):

    1625 / 1275 / 1295 mm

  • Weight:

    830 kg
