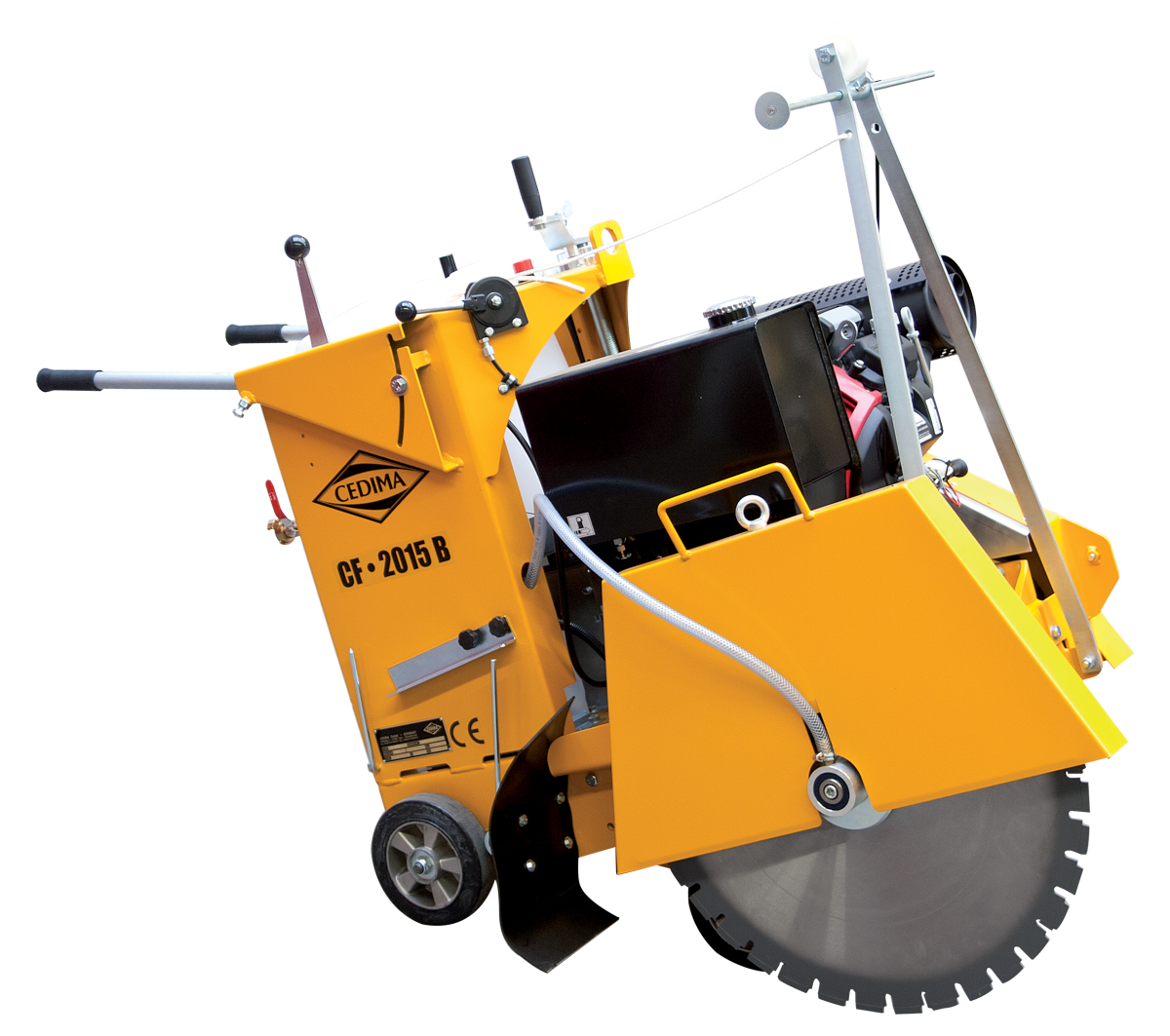

Floor Saw CF-2015 B

CF-2015 B

The CF-2015 B floor saw impresses with its user-friendly overall concept and compact design. The powerful petrol engine with electric start allows the machine to cut optimally. Equipped with a hydrostatic travel drive, it allows the floor saw to be fed evenly during cutting operation and relieves the operator. The handles are individually height-adjustable. The large water tank (35 l) and the economical water supply to the blade through the cutting shaft ensure long and uninterrupted work.

Features & Characteristics

  • Uniform feed due to hydrostatic drive
  • Height-adjustable handles
  • Large 35 litre water tank and water supply through the cutting shaft
  • Cutting depth infeed via hand crank
  • Adjustable cutting depth indicator
  • Saw blade mount possible on the right or left

Accesories

  • Green concrete conversion kit

Technical specifications

  • Max. cutting depth:

    240 mm

  • max. Saw Blade Ø:

    650 mm

  • min. Saw Blade Ø:

    400 mm

  • Bore hole of blade:

    25.4 mm

  • Blade mounting:

    right or left

  • Max. mounting width:

    20 mm

  • Max. motor output:

    15.5 kW / 21 hp

  • net. motor output:

    15.5 kW

  • Motor type:

    Petrol

  • Motor designation:

    Hoda GX-630

  • Motor starter:

    Electric start

  • Cutting depth adjustment:

    Crank handle

  • Feed:

    hydrostatic

  • Water tank content:

    35 l

  • Dimensions L/W/H (transport):

    1300 / 750 / 1050 mm

  • Weight:

    280 kg
