Floor Saw CF-22 E 800

CF-22 E 800

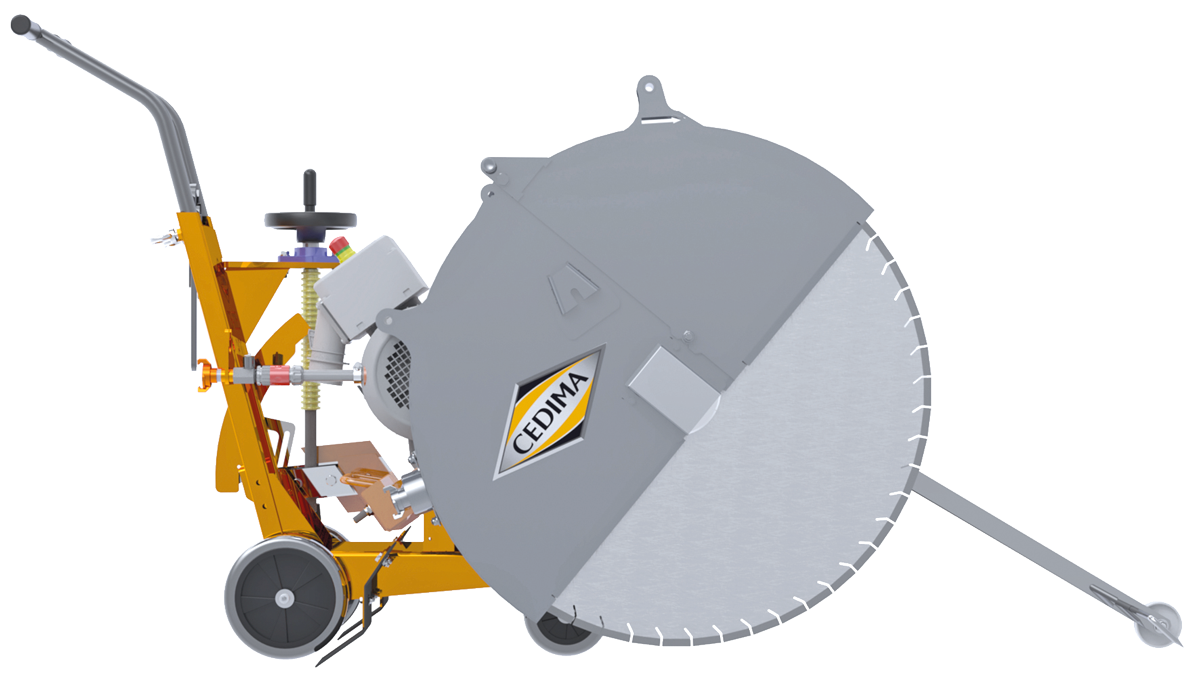

Despite its compact design, the CF-22 E.800 achieves a cutting depth of 320 mm, enabling even more demanding cutting jobs. It is a further development of the proven CF-22 E. Rocker and blade guard have been optimized and now allow the use of diamond saw blades up to 800 mm in diameter. The CF-22 E 800 can also be disassembled into 3 easy-to-transport assemblies without tools in just a few simple steps, making it ideal for use in particularly hard-to-reach areas.

Features & Characteristics

  • Can be dismantled into three assemblies for transport
  • Saw blade mount possible on the right or left
  • Quick, easy cutting side change
  • Infinitely variable cutting depth adjustment by means of a hand crank
  • Hinged blade guard for cuts up to walls
  • Adjustable cutting depth indicator and parking brake

Accesories

  • Flush-to-wall cutting equipment

Technical specifications

  • Max. cutting depth:

    320 mm

  • max. Saw Blade Ø:

    800 mm

  • min. Saw Blade Ø:

    500 mm

  • Bore hole of blade:

    25.4 mm

  • Blade mounting:

    right or left

  • Max. mounting width:

    10 mm

  • Max. motor output:

    7.5 kW

  • Motor type:

    Electric

  • Electrical connection:

    400 V / 50 Hz / 16 A

  • Cutting depth adjustment:

    Crank handle

  • Feed:

    manual

  • Dimensions L/W/H (transport):

    1420 / 650 / 1025 mm

  • Weight:

    126 kg
