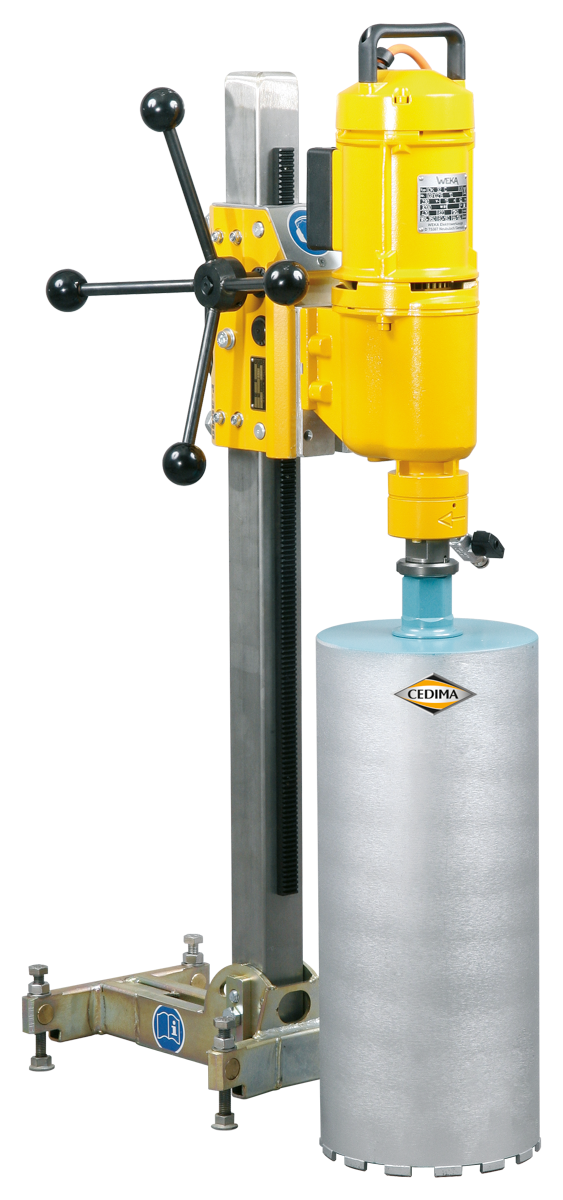

The particularly versatile P-3000 drill rig is available in four variants. Two sturdy steel dowel feet - uni or professional - can be combined with two drill columns of different lengths. By using two different mounting plates, all available Cedima drill motors can be used with the P-3000. The maximum drilling diameter is 400 mm.

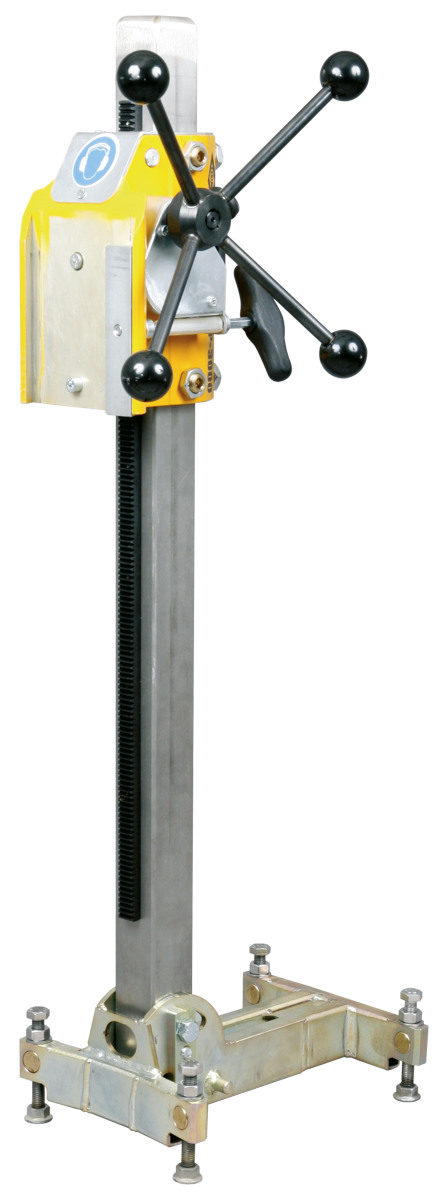

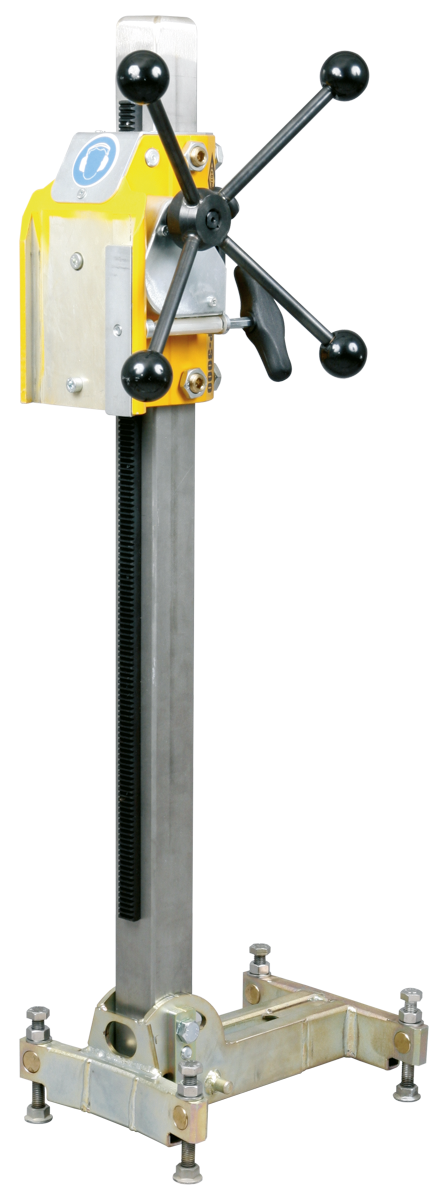

P-3000
Features & Characteristics
- Carriage with integrated fine feed
- Telescopic post

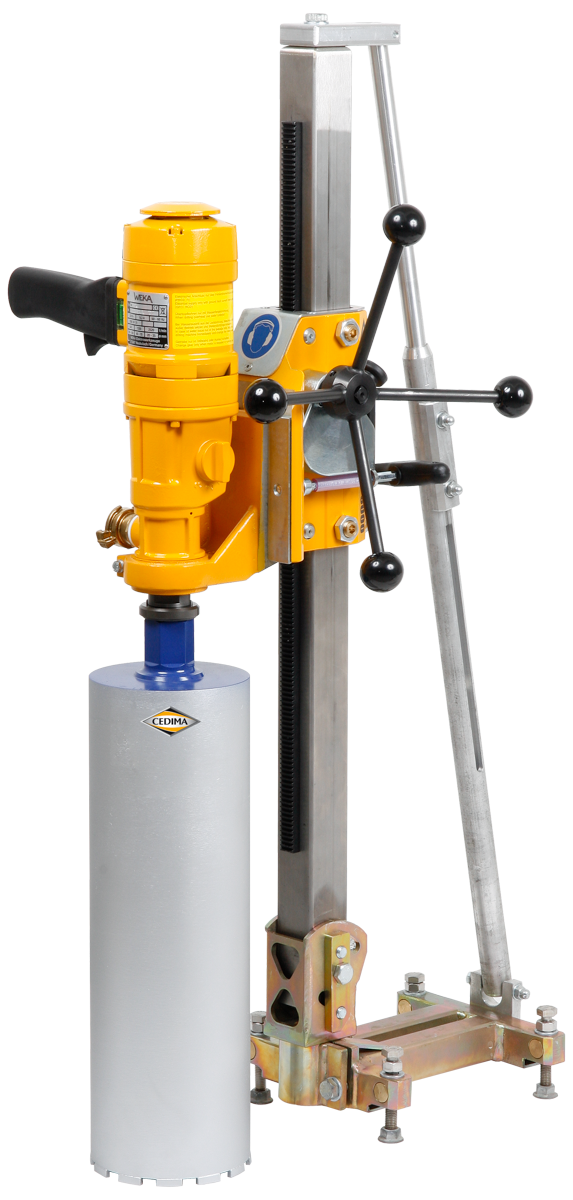

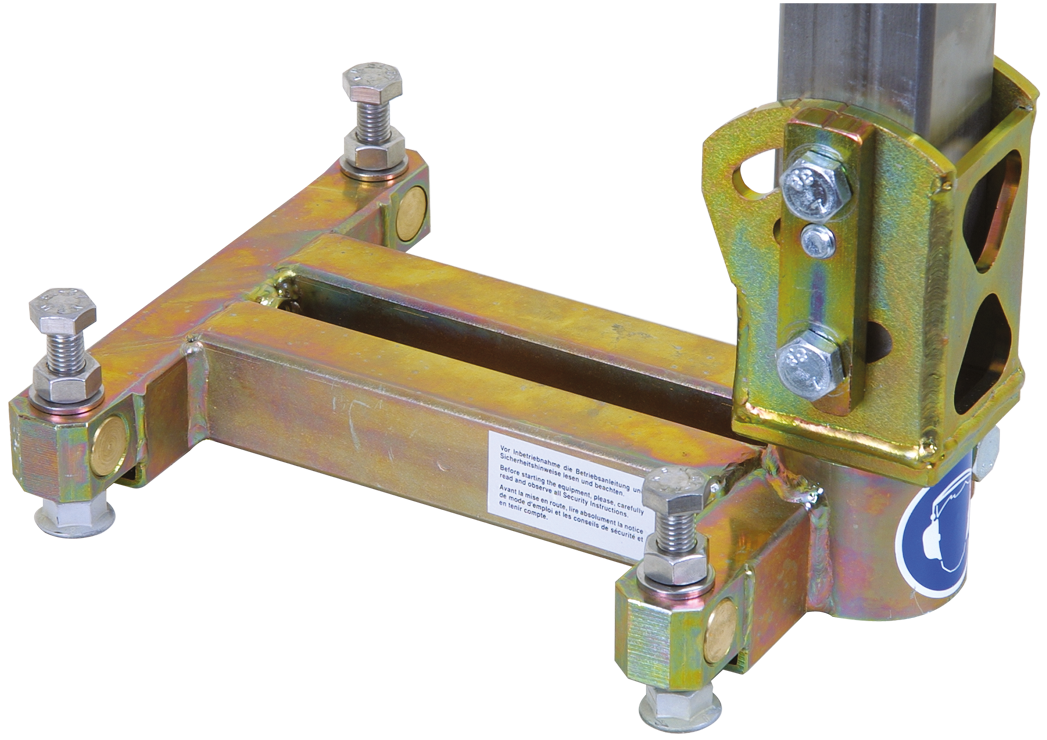

- Stable dowel foot Profi with swivel and swivel joint
- Extra-wide, high-quality rack
- Long carriage for great stability and precision when drilling

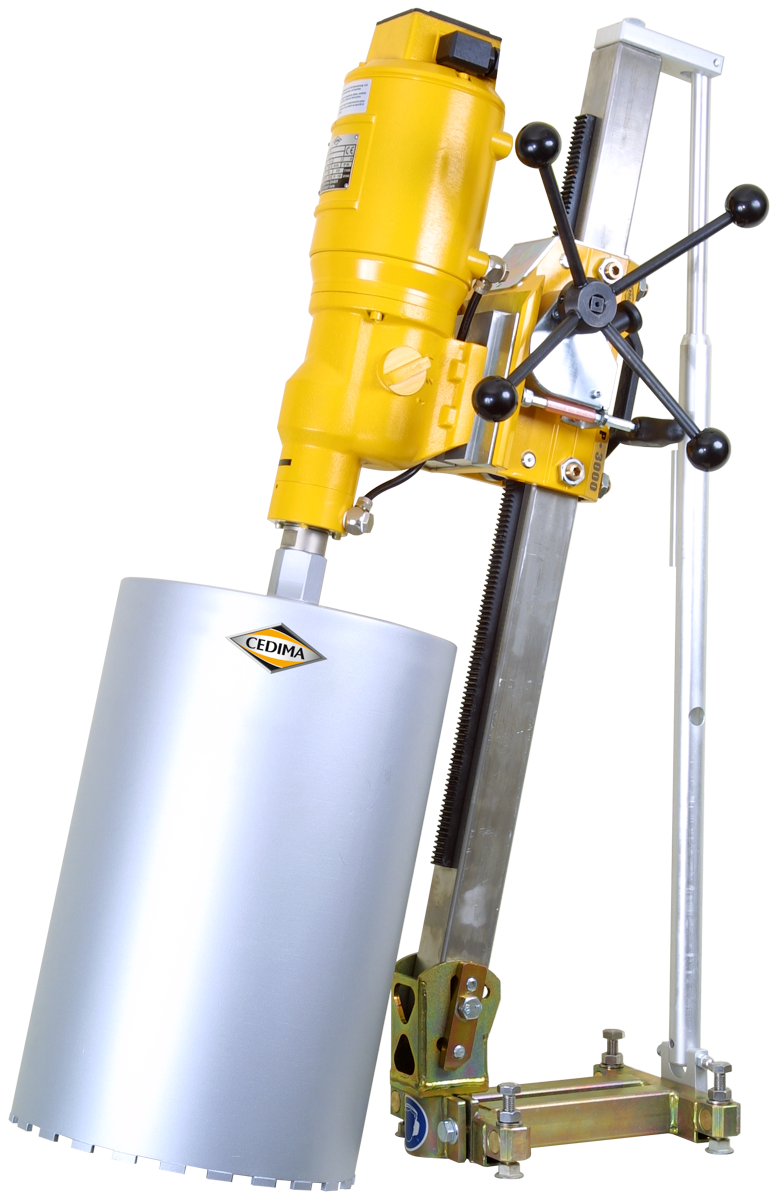

- Integrated swivel joint up to 45° with scale and locking function at 90° position
Technical specifications
Drill Ø from-to:
400 mm
max. lifting:
1620 mm
Feed:
manual
Dimensions L/W/H (transport):
310 x 220 x 1945 mm
Weight:
14.5 kg
Use with:
C-BMS-350, C-BM-32, C-BM-32 S, DK-32, DK-52
