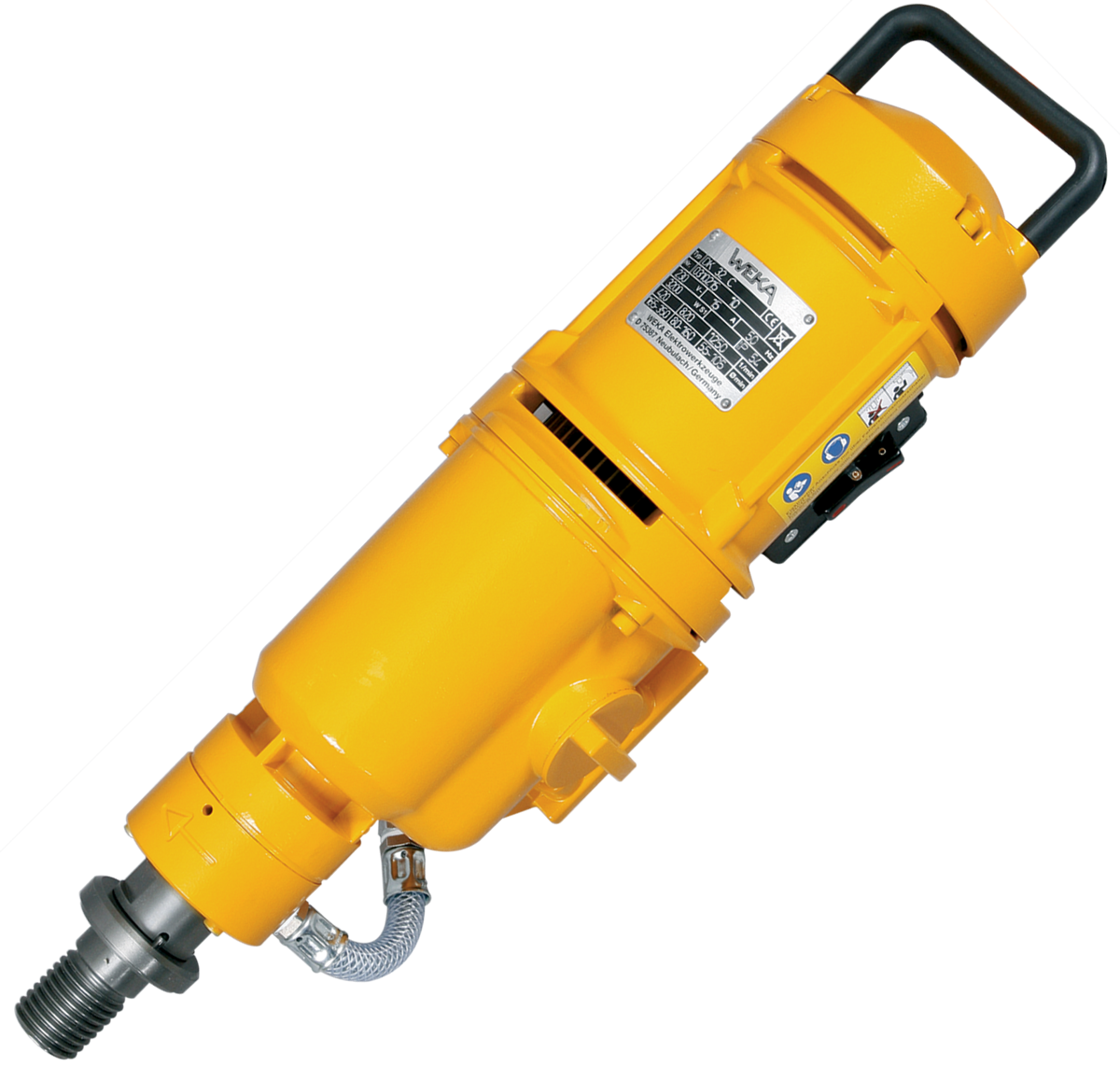

Drill motor DK-32

DK-32

The proven DK-32 drill motor with 3.2 kW power for medium-duty drilling tasks.

Features & Characteristics

  • Powerful column-guided core drilling machine
  • 3-speed gearbox with oil bath lubrication
  • Overload clutch and oil pump
  • Motor protection and soft start through Intellitronics
  • Integrated easy-release ring for the drill bit
  • PRCD circuit breaker integrated in the cable

Accesories

  • CEBOR dry drilling system

Technical specifications

  • Drill Ø from-to:

    50 - 350 mm

  • Drill bit connection:

    1 1/4" UNC

  • Motor output (net):

    3,2 kW

  • Electrical connection:

    232 V / 50 Hz

  • Dimensions L/W/H (transport):

    550 x 140 x 170 mm

  • Weight:

    11,9 kg

  • Use with:

    P-250, P-3000, P-500, P-6000
