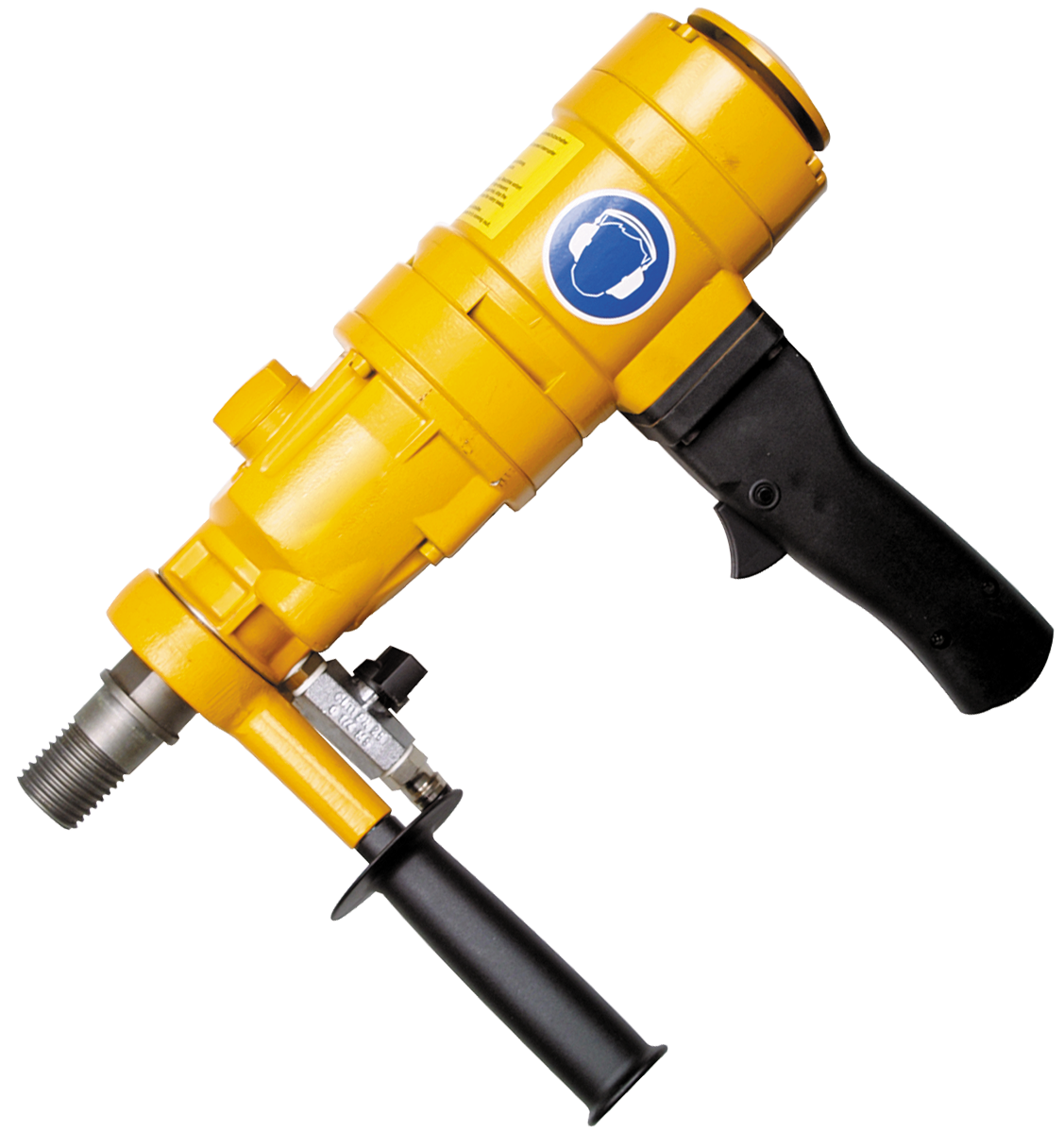

Drill motor DK-17

DK-17

The drill motor with 2.0 kW power for wet or dry drilling can be used hand-held or with a drill stand with a 60 mm clamping neck.

Features & Characteristics

  • Ideal for wet and dry drilling with soft impact
  • Full metal housing
  • 3-speed gearbox with oil bath lubrication
  • Motor protection and soft start through Intellitronics
  • Integrated easy-release ring for the drill bit
  • PRCD circuit breaker integrated in the cable

Technical specifications

  • Drill Ø from-to:

    16 - 160 mm

  • Drill bit connection:

    1 1/4" UNC

  • Motor output (net):

    2,0 kW

  • Electrical connection:

    231 V / 50 Hz

  • Dimensions L/W/H (transport):

    420 x 100 x 300 mm

  • Weight:

    6,3 kg

  • Use with:

    H-160, P-250
