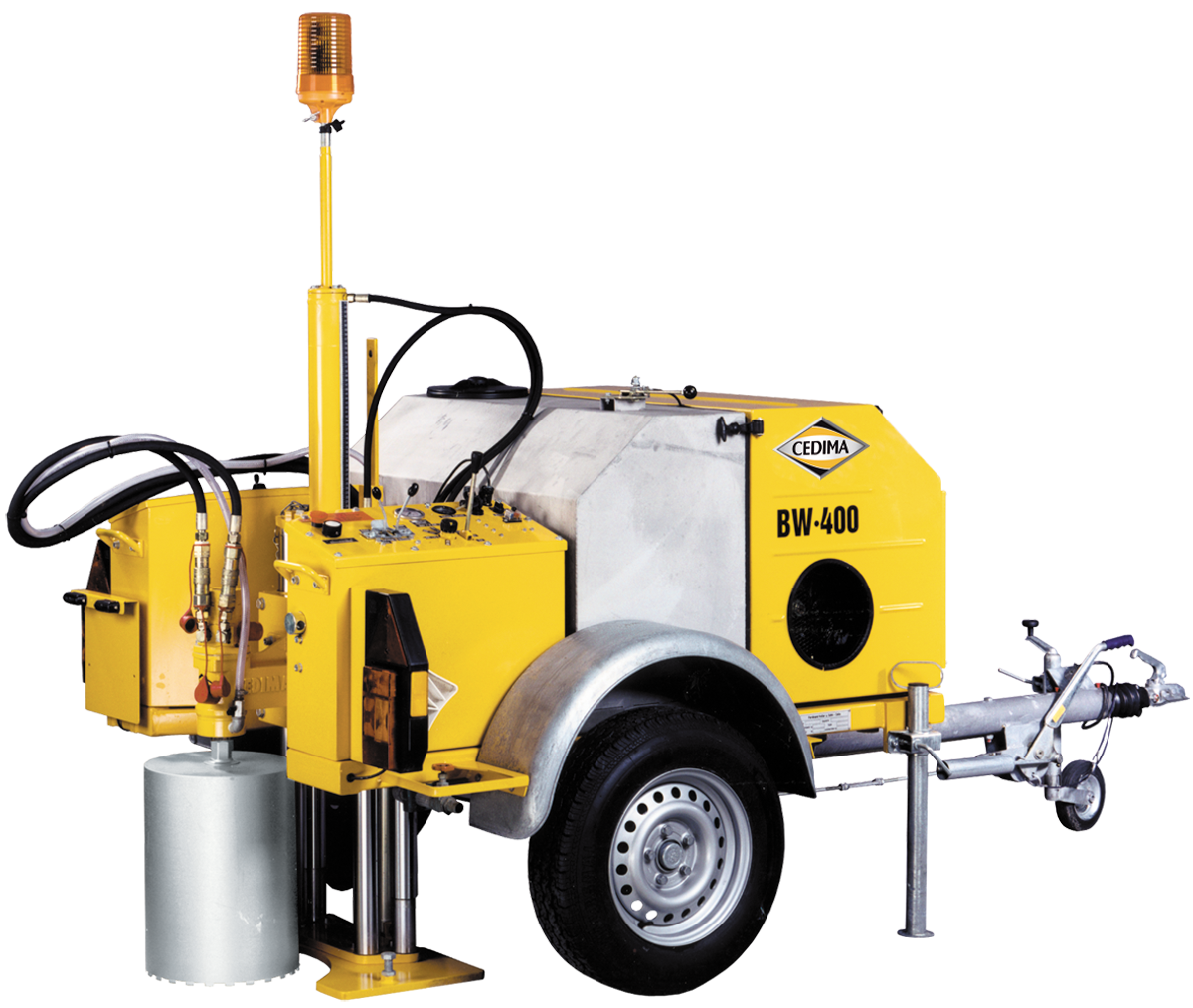

Drill trailer BW-400

BW-400

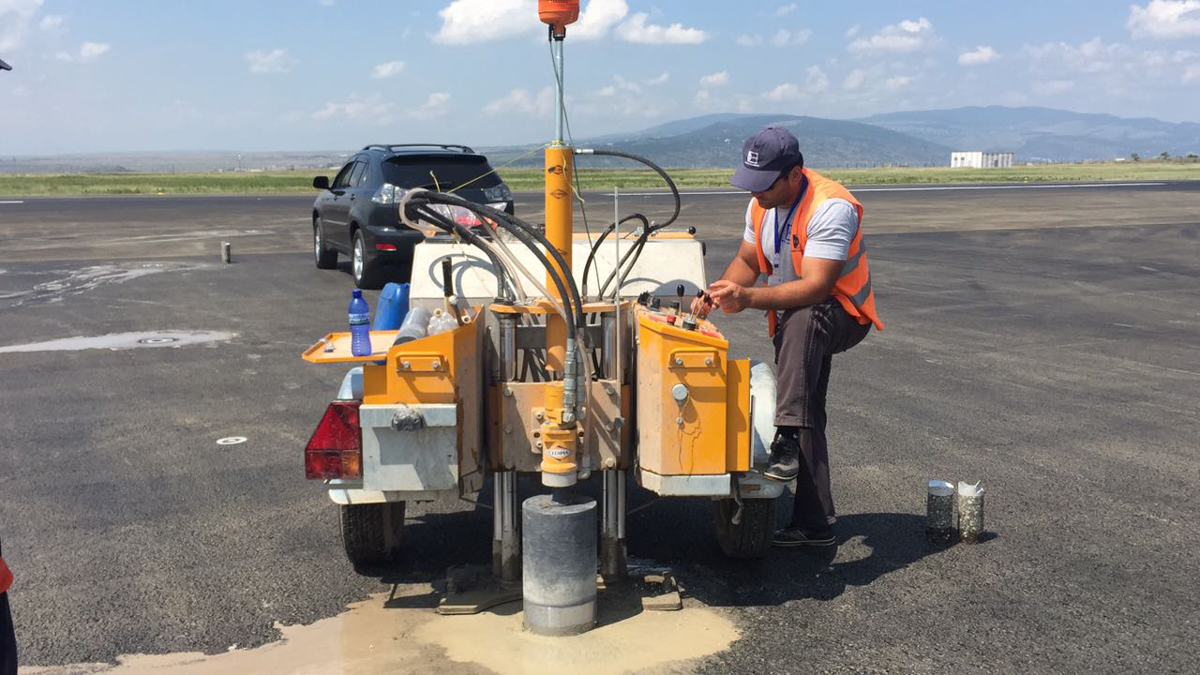

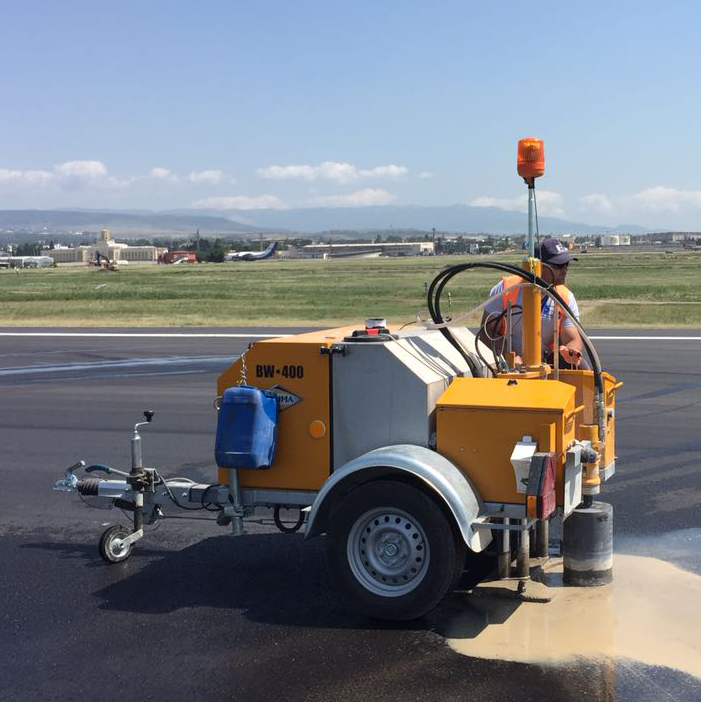

The fully hydraulic BW-400 is particularly suitable for removing test cores from asphalt or concrete pavements. At airfields, the drilling rig is used for the production of step boreholes for the underfloor firing of the runways. With the BW-400 H, you can drill independently of any supply line.

Features & Characteristics

  • Drilling feed, lifting and lowering of the drilling platform hydraulically
  • 2-cylinder Hatz diesel engine with soundproof hood
  • Infinitely variable speed
  • Stainless steel water tank with large filling opening
  • Overrun brake with automatic reversing - ball towbar
  • TÜV approval for road traffic

Accesories

  • Drill bit centering device
  • Collision protection
  • Demolition hammer
  • Hydraulic motors for drilling Ø up to 300 or 600 mm
  • Spacer plate type T for drilling Ø 400-600 mm

Technical specifications

  • Drill Ø from-to:

    400 mm

  • max. lifting:

    600 mm

  • usable drill bit length:

    550 mm

  • Drill bit connection:

    1 1/4" UNC

  • Motor output (net):

    15.5 kW

  • Motor type:

    Diesel

  • Motor designation:

    Hatz 2 G 40

  • Feed:

    hydraulic

  • water pump:

    electric

  • Water tank content:

    300l

  • Dimensions L/W/H (transport):

    3300 x 1700 x 1830 mm

  • Weight:

    1500 kg
