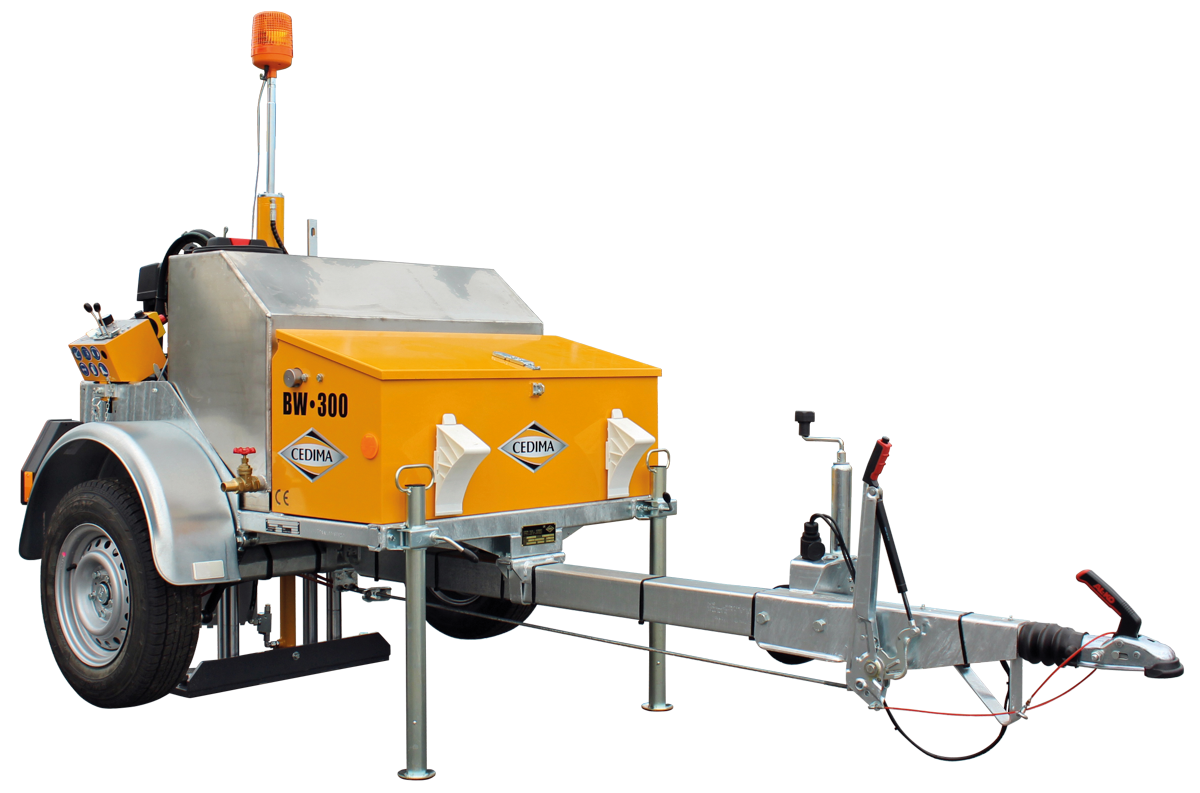

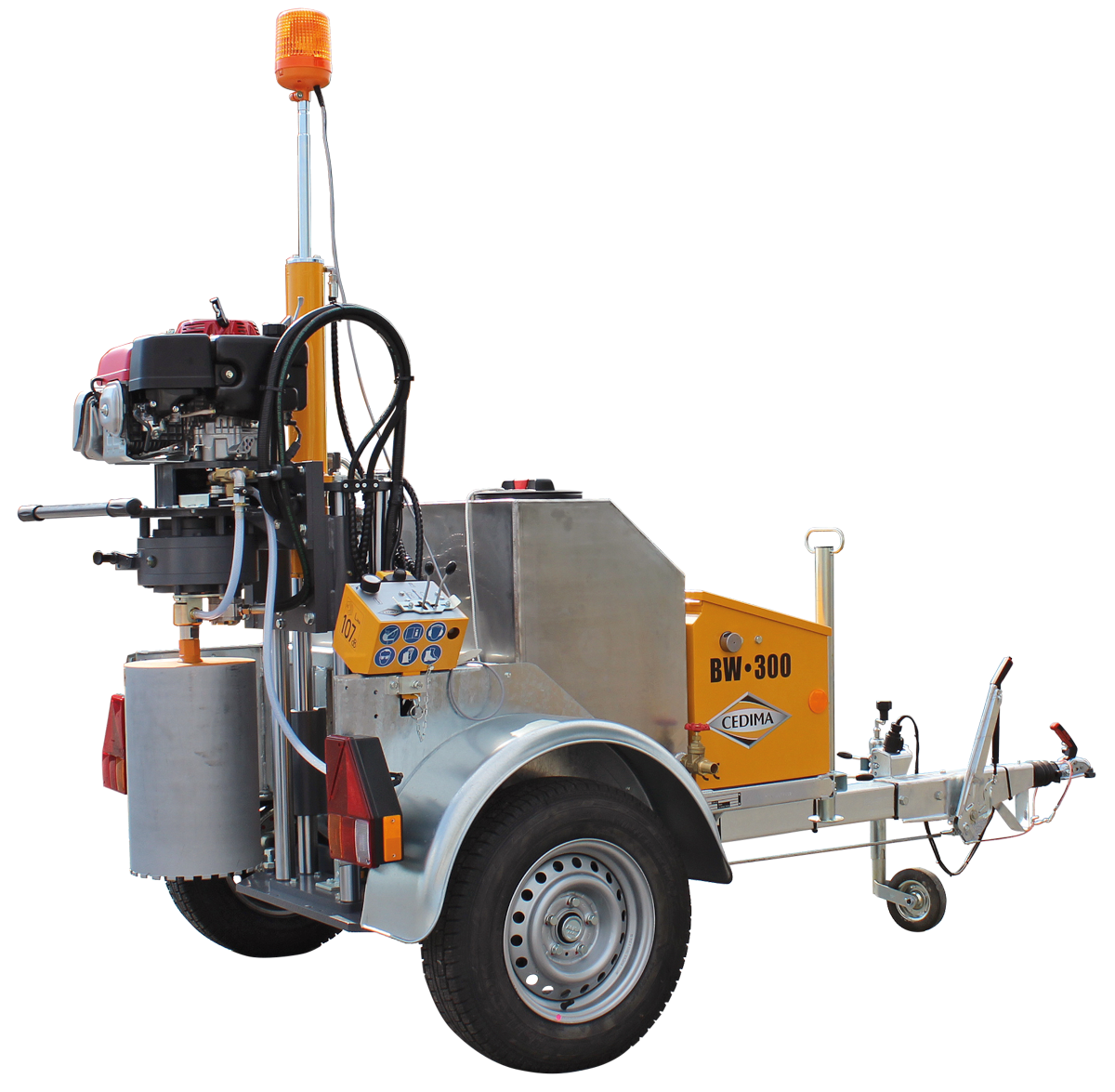

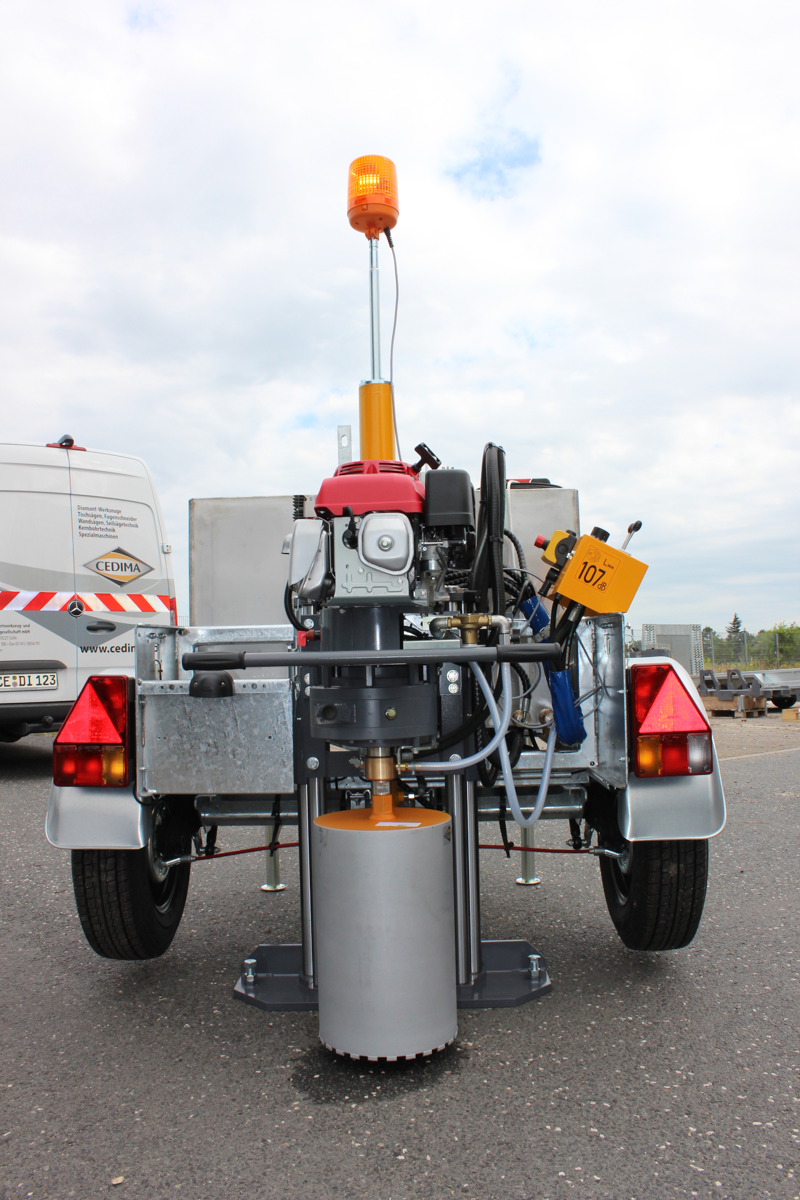

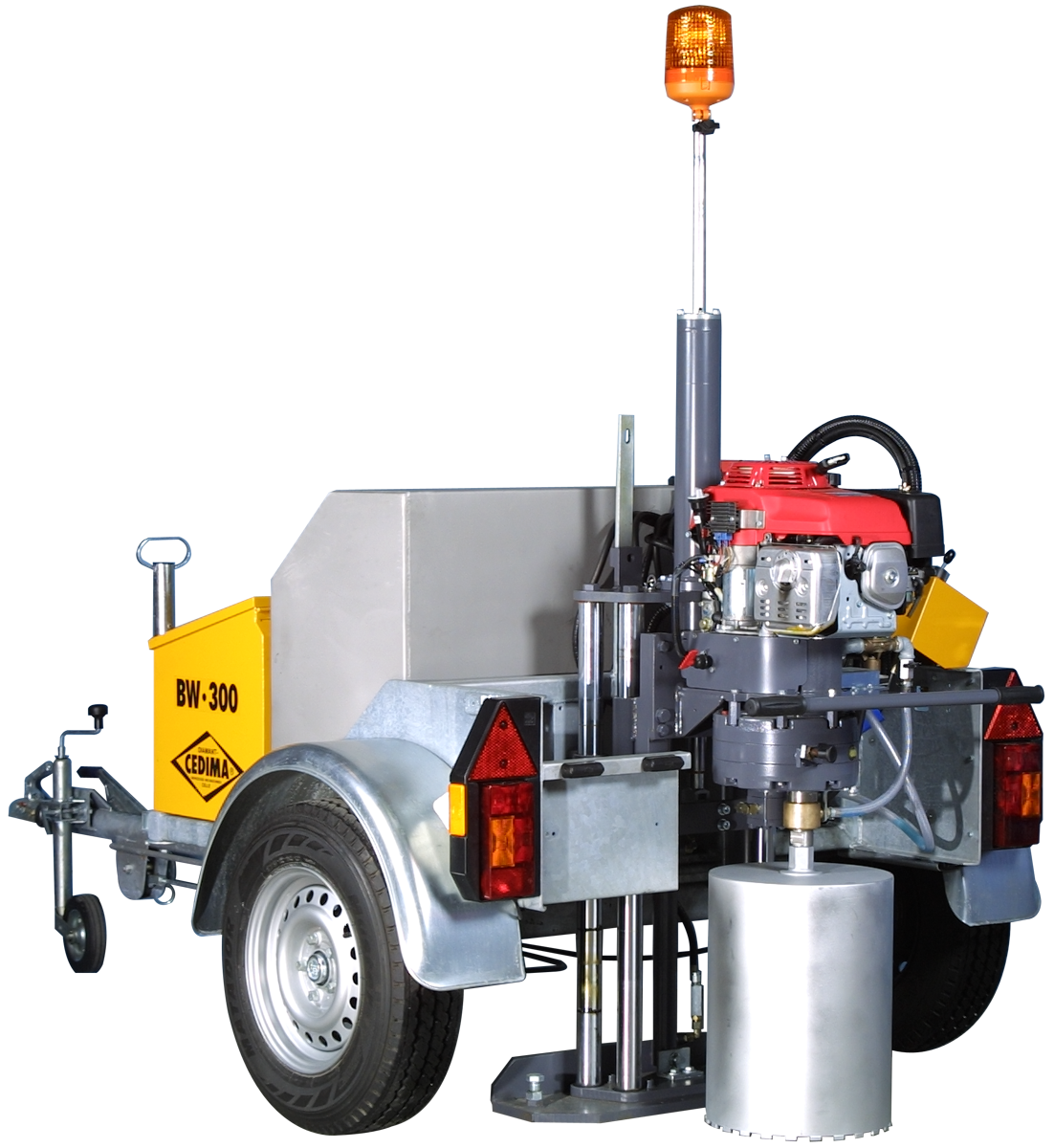

Drill trailer BW-300

BW-300

The BW-300 is particularly suitable for removing test cores from asphalt or concrete pavements. At airfields, the drilling rig is used to drill holes for underfloor lighting of runways. With the BW-300, you can drill independently of any supply line.

Features & Characteristics

  • Drilling feed, lifting and lowering of the drilling platform hydraulically
  • Hydraulic control panel can be mounted on the left or right

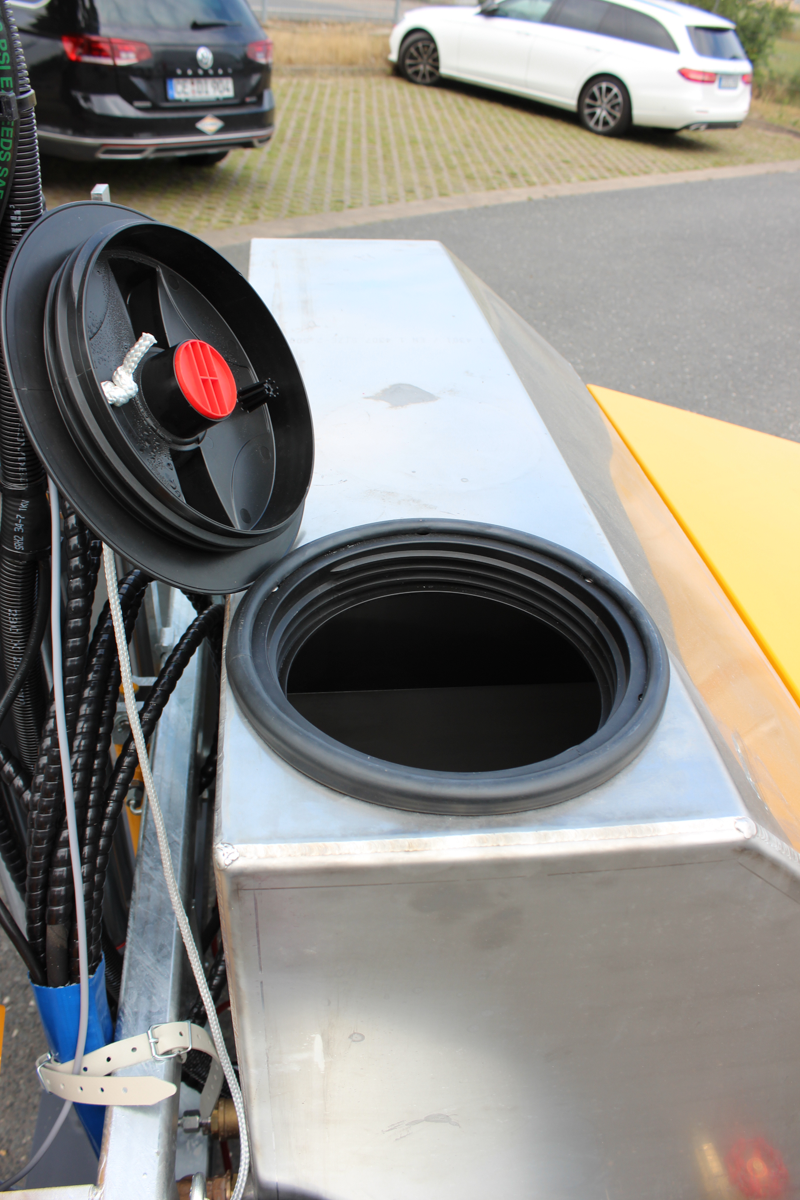

  • Stainless steel water tank with large filling opening
  • Overrun brake with automatic reversing
  • Ball towbar
  • TÜV approval for road traffic

Accesories

  • Drill bit centering device
  • Collision protection

Technical specifications

  • Drill Ø from-to:

    400 mm

  • max. lifting:

    600 mm

  • usable drill bit length:

    550 mm

  • Drill bit connection:

    1 1/4" UNC

  • Motor output (net):

    7.6 kW

  • Motor type:

    Petrol

  • Motor designation:

    Honda GXV-390

  • Feed:

    hydraulic

  • water pump:

    mechanical

  • Water tank content:

    300l

  • Dimensions L/W/H (transport):

    3300 x 1660 x 1800 mm

  • Weight:

    1200 kg
