Drill collumn P-500.1

P-500.1

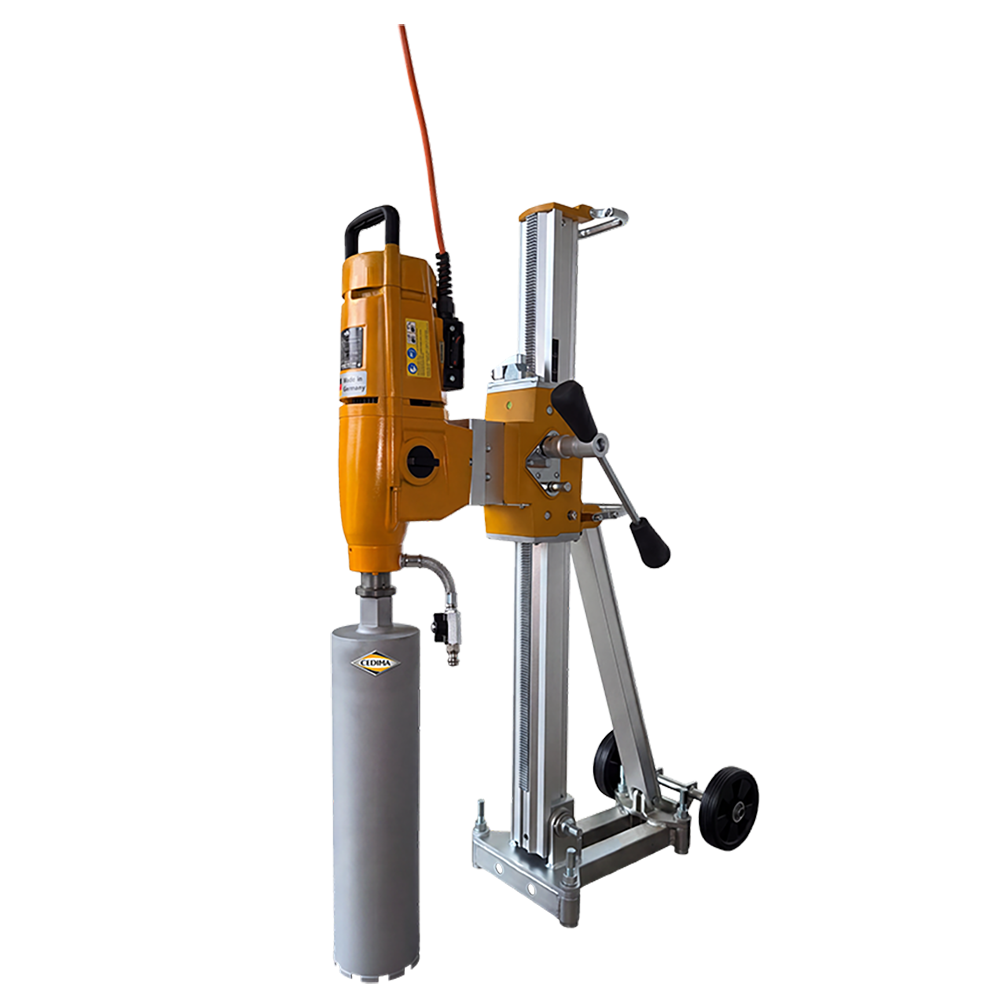

The Cedima P-500.1 drill rig for medium-duty drilling tasks is the ideal equipment for the varying applications of core drilling technology. It is characterized by high flexibility and ease of use. The P-500.1 can be equipped with various Cedima drill motors. The maximum drilling diameter is 500 mm.



Features & Characteristics

  • Guide rail made of aluminium profile
  • Optional usable reduction gear on the feed carriage 1:3.3 or 1.1
  • Double support of the column to the rear
  • Stable dowel foot with integrated adjustment screws
  • Column infinitely adjustable up to 45°
  • Carriage lockable

Technical specifications

  • Drill Ø from-to:

    500 mm

  • max. lifting:

    690 mm

  • Feed:

    manual

  • Dimensions L/W/H (transport):

    670 x 320 x 1100 mm

  • Weight:

    22,7 kg

  • Use with:

    C-BMS-350, C-BM-32, C-BM-32 S, DK-32, DK-52
