The Cedima P-250.1 drill rig is the ideal equipment for the varying areas of application of core drilling technology. It is characterized by high flexibility and ease of use. The P-250.1 can be equipped with various Cedima drill motors. The maximum drilling diameter is 250 mm.
P-250.1
Features & Characteristics

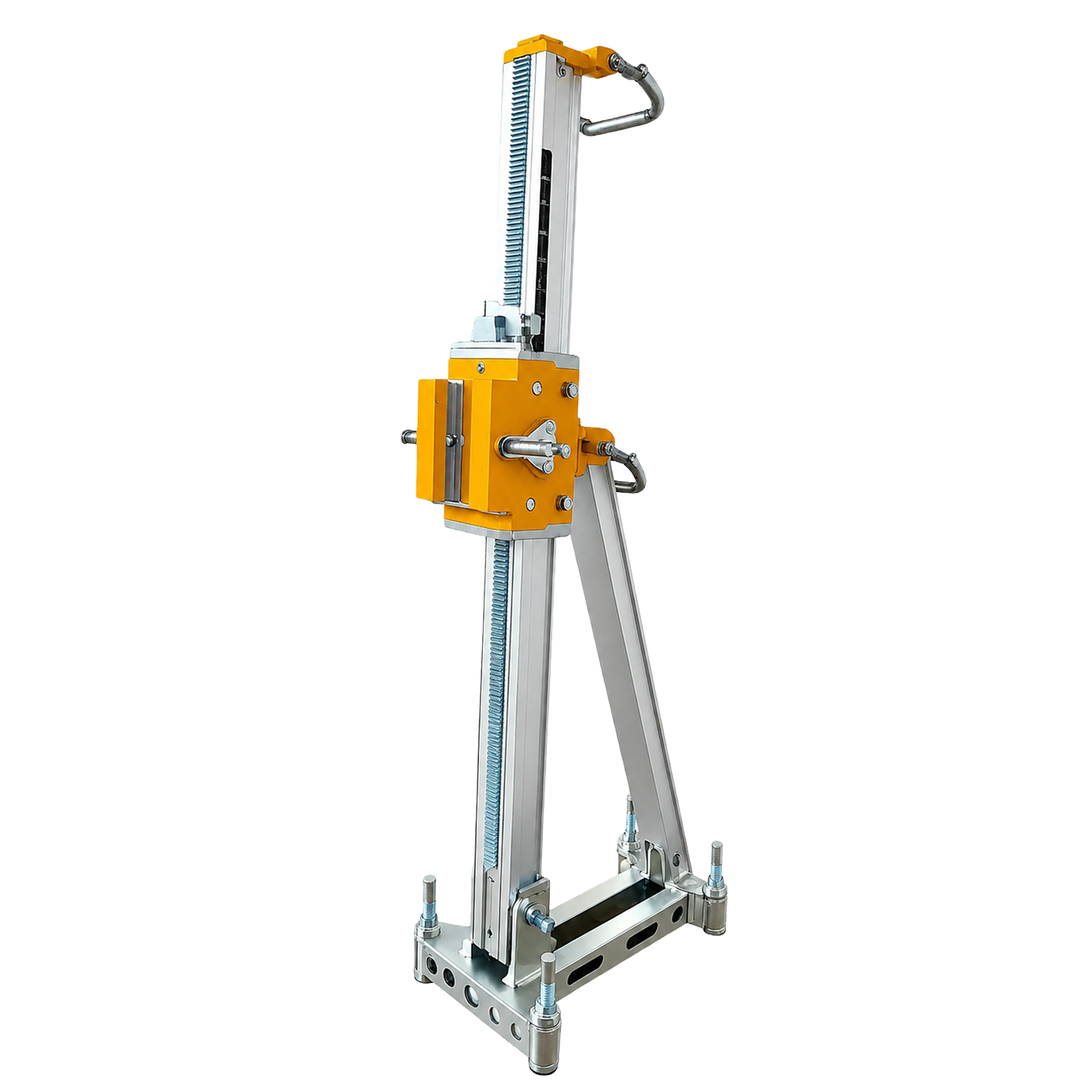

- Guide rail made of aluminium profile, only 13,5 kg
- Carrying handle
- Double support of the column to the rear
- Stable dowel foot with integrated adjustment screws
- Column infinitely adjustable up to 45°
- Carriage lockable
Technical specifications
Drill Ø from-to:
250 mm
max. lifting:
660 mm
Feed:
manual
Dimensions L/W/H (transport):
990 x 265 x 410 mm
Weight:
13,5 kg
Use with:
DKS-15 SP, C-BMH-160, C-BM-17, C-BMS-350, C-BM-32, C-BM-32 S, DK-17, DK-32
