The UFF LASER SYSTEM offers a complete solution for the production of ultra-flat industrial floors from a single source. The heart of the system is the laser-controlled high-performance milling machine LASER CAMEL. In contrast to conventional methods, it operates with intelligent sensor technology and is oriented towards a defined reference plane to mill floors exactly to the target level, regardless of existing unevenness. The system is Industry 4.0 ready and achieves international standards such as EN 15620 and DIN 15185.



Features & Characteristics

  • Highest accuracy of up to 1 mm over a length of 50 meters.
  • High daily output of 350–400 m² with 5 mm removal.
  • Fine milling structure allows post-processing in just one grinding step.
  • Fully gear-driven concept for minimal maintenance effort.
  • Minimization of operator influence through intelligent laser control.
  • Precise processing of planes, ramps (up to 4°), and transition areas.

Components

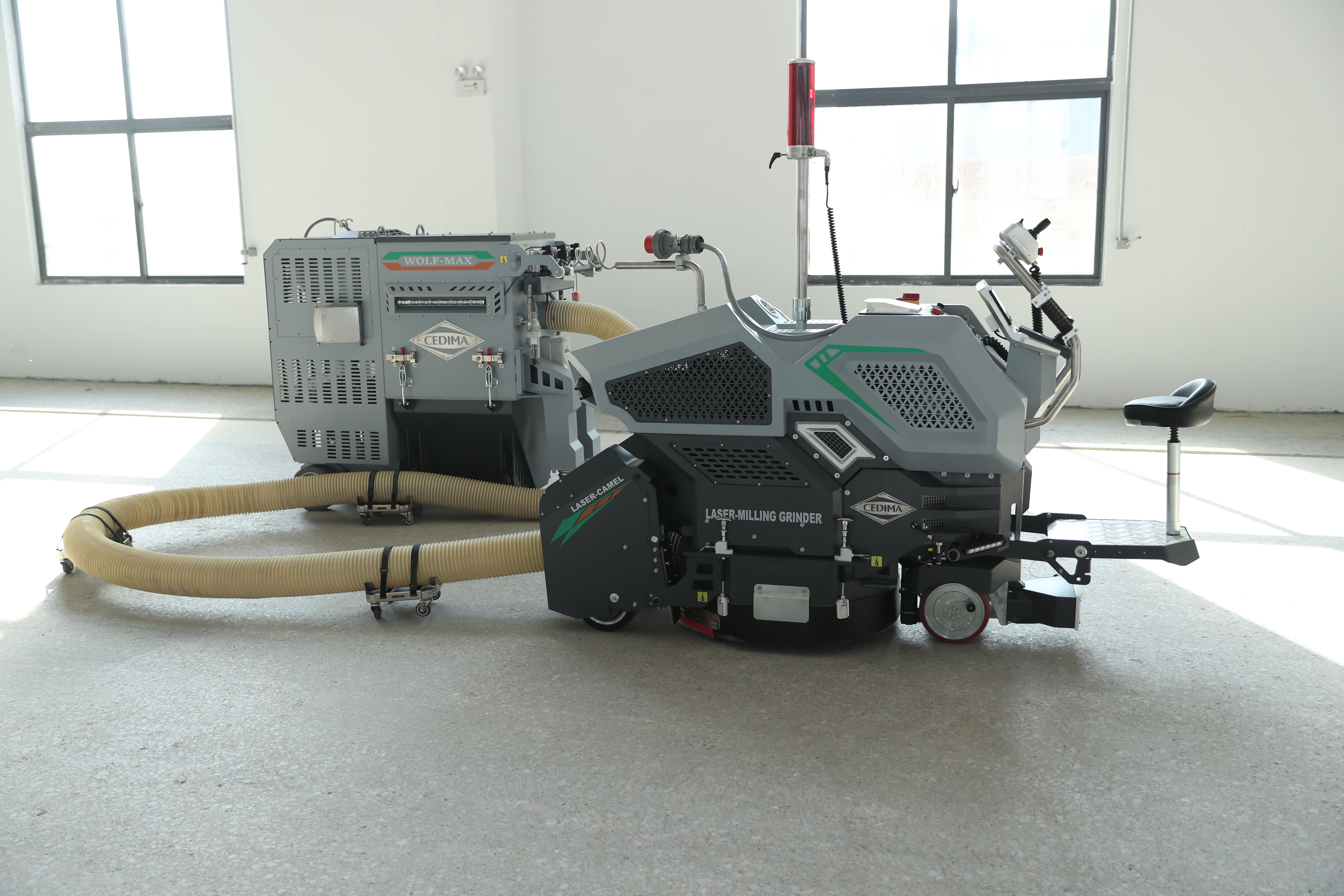

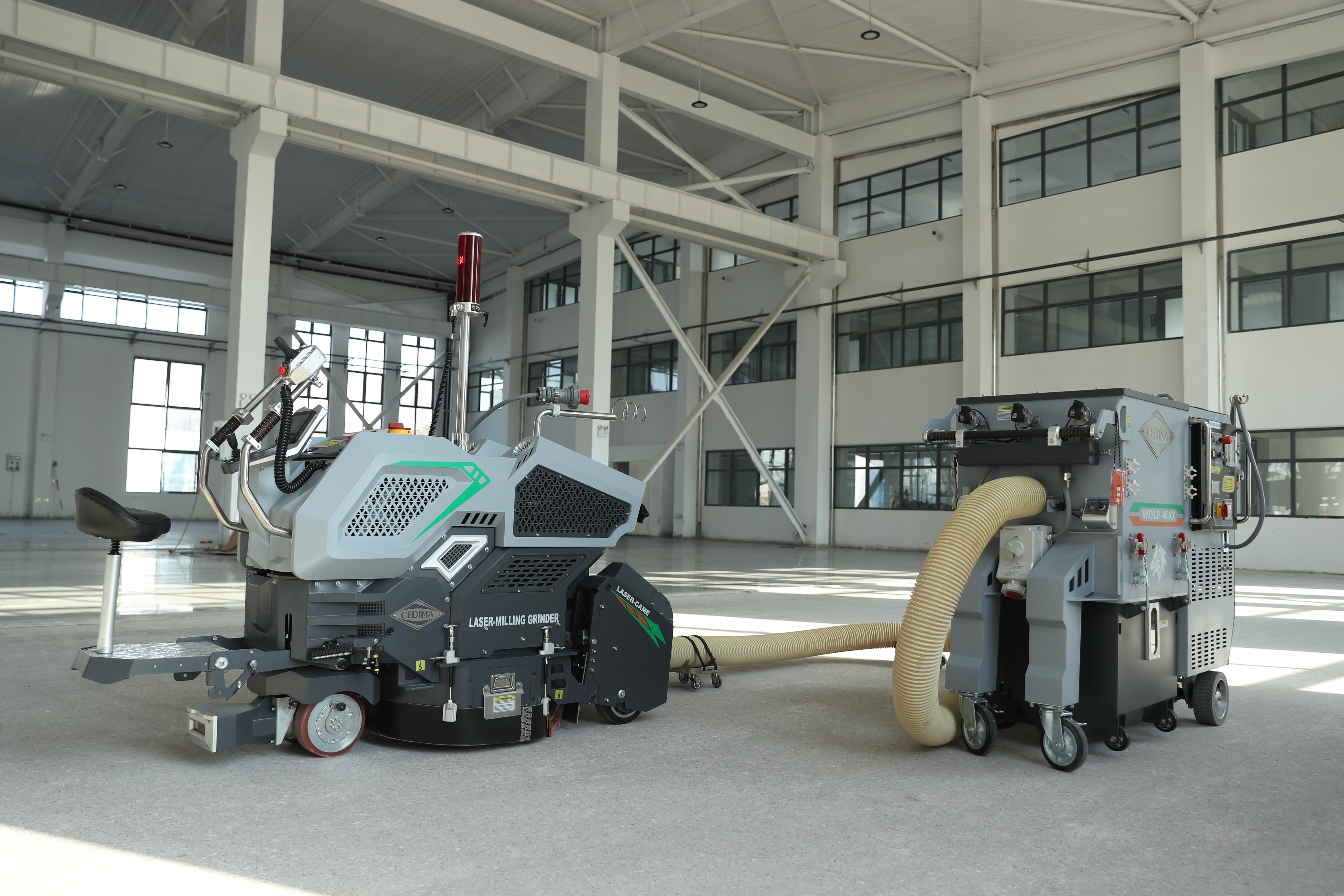

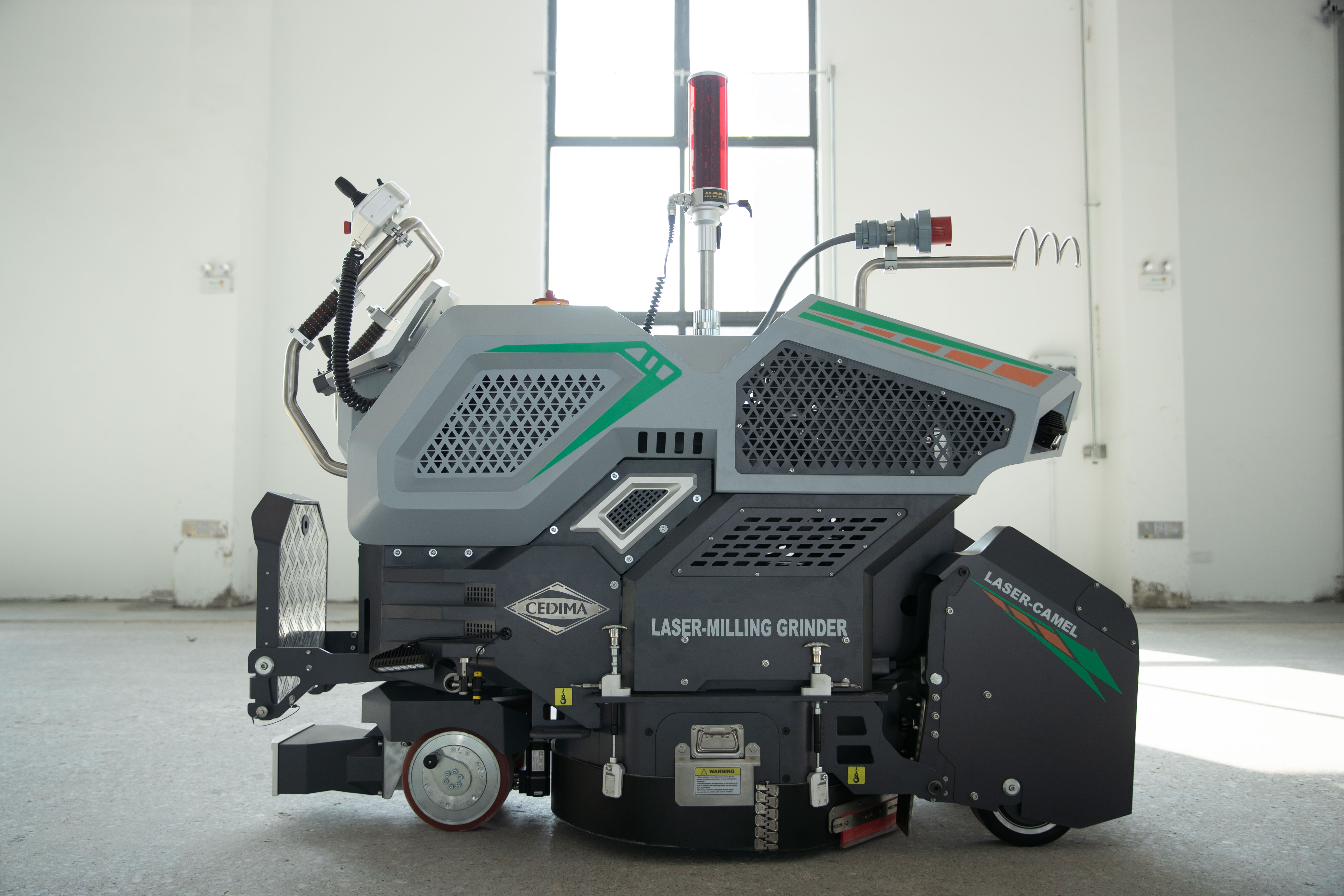

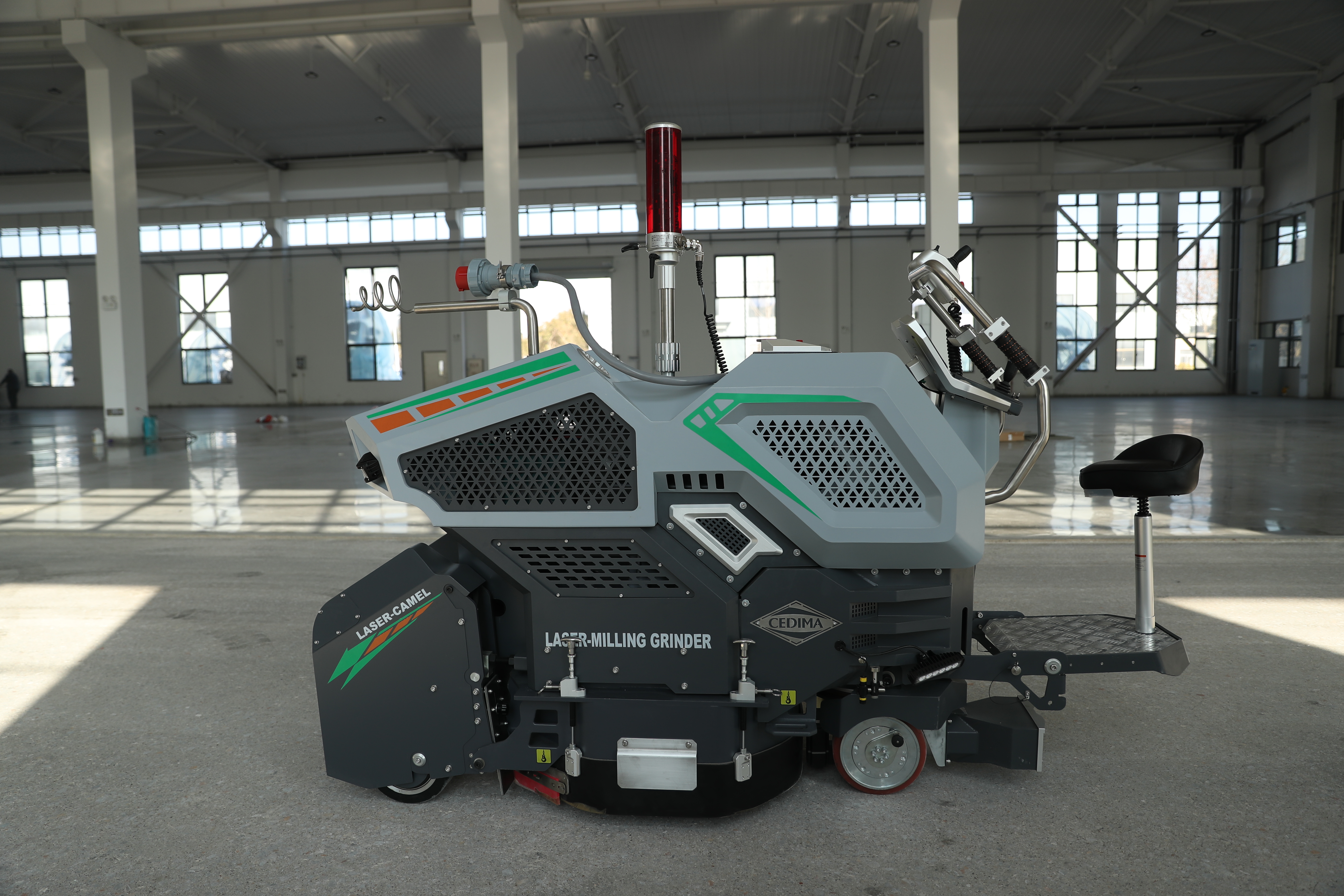

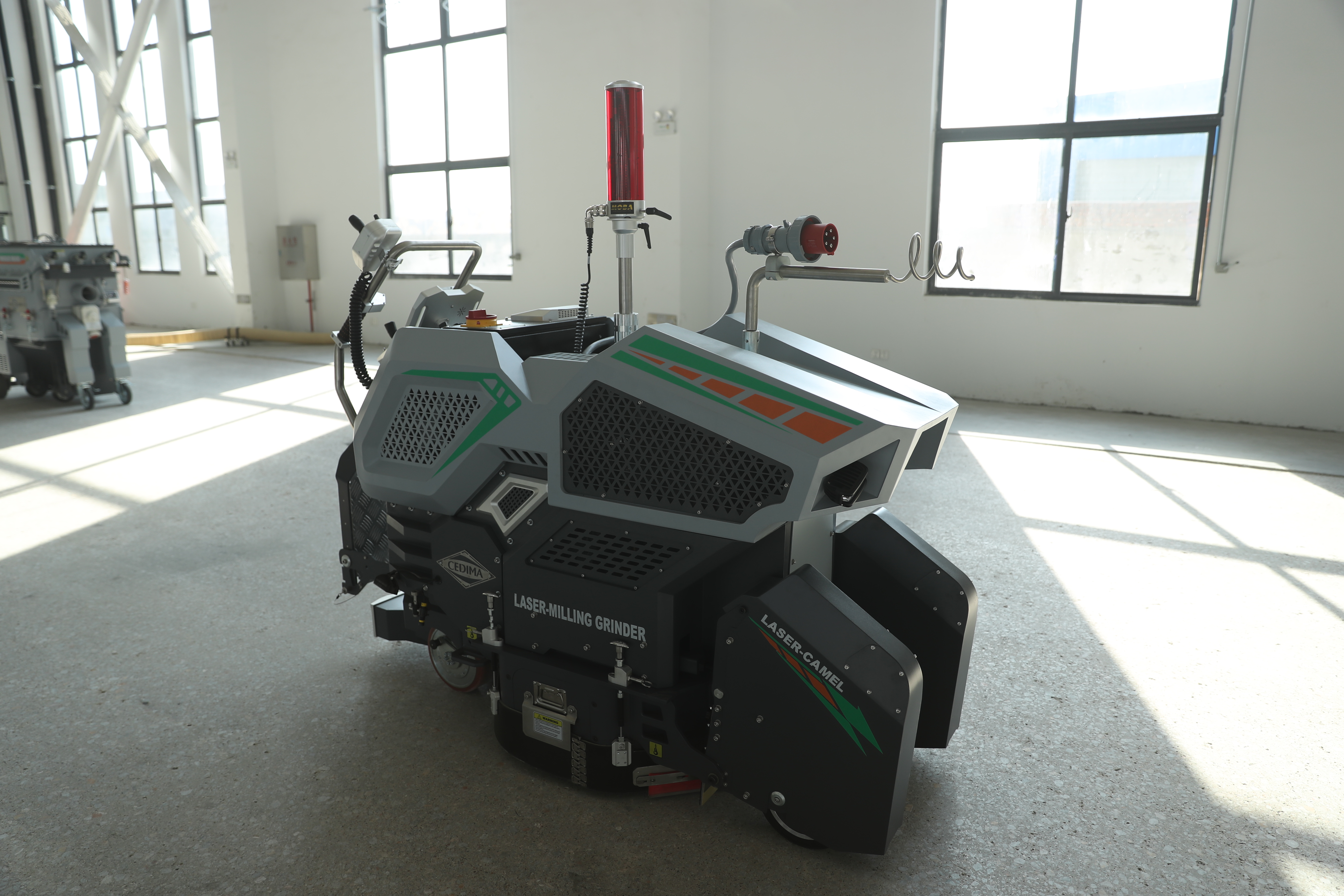

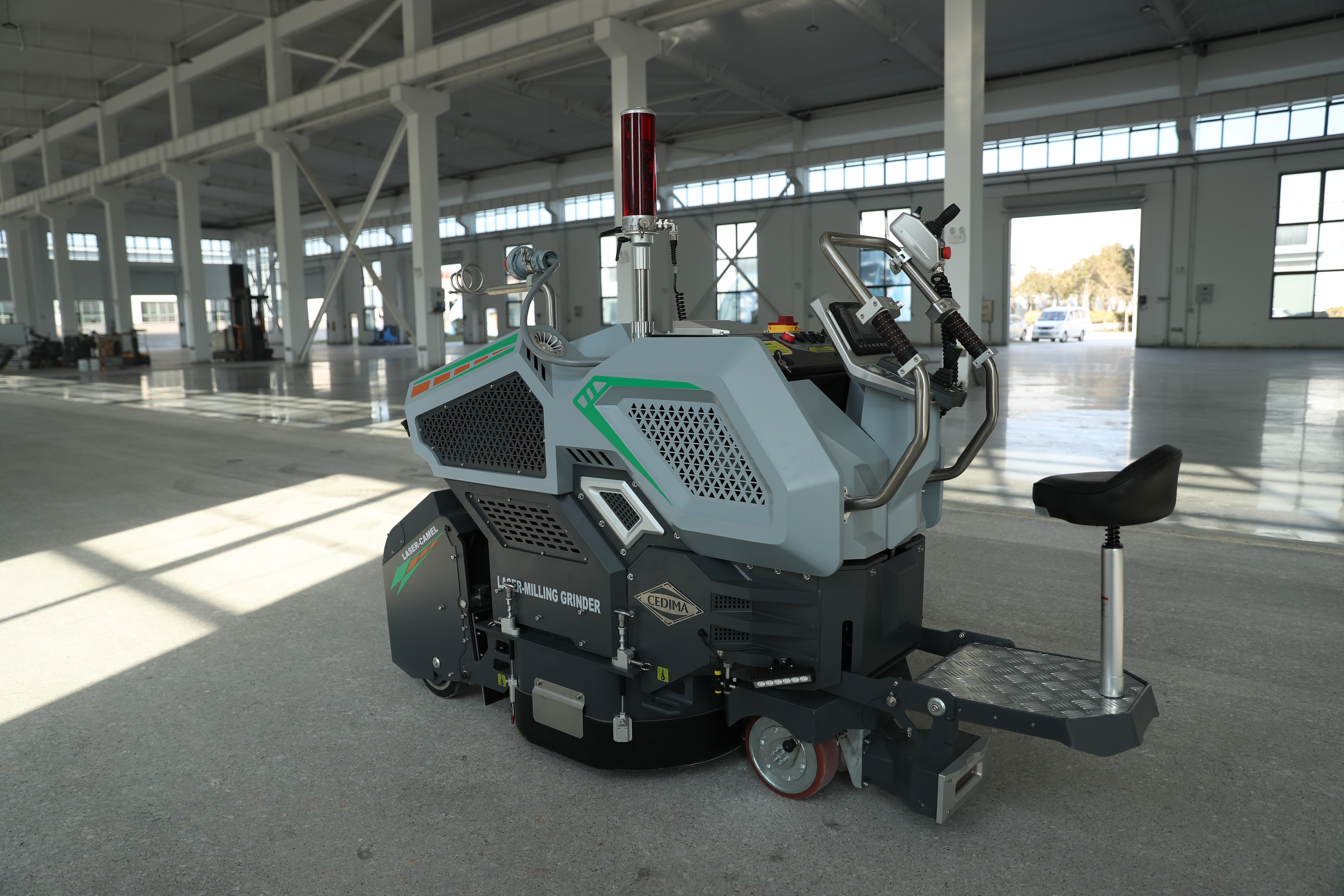

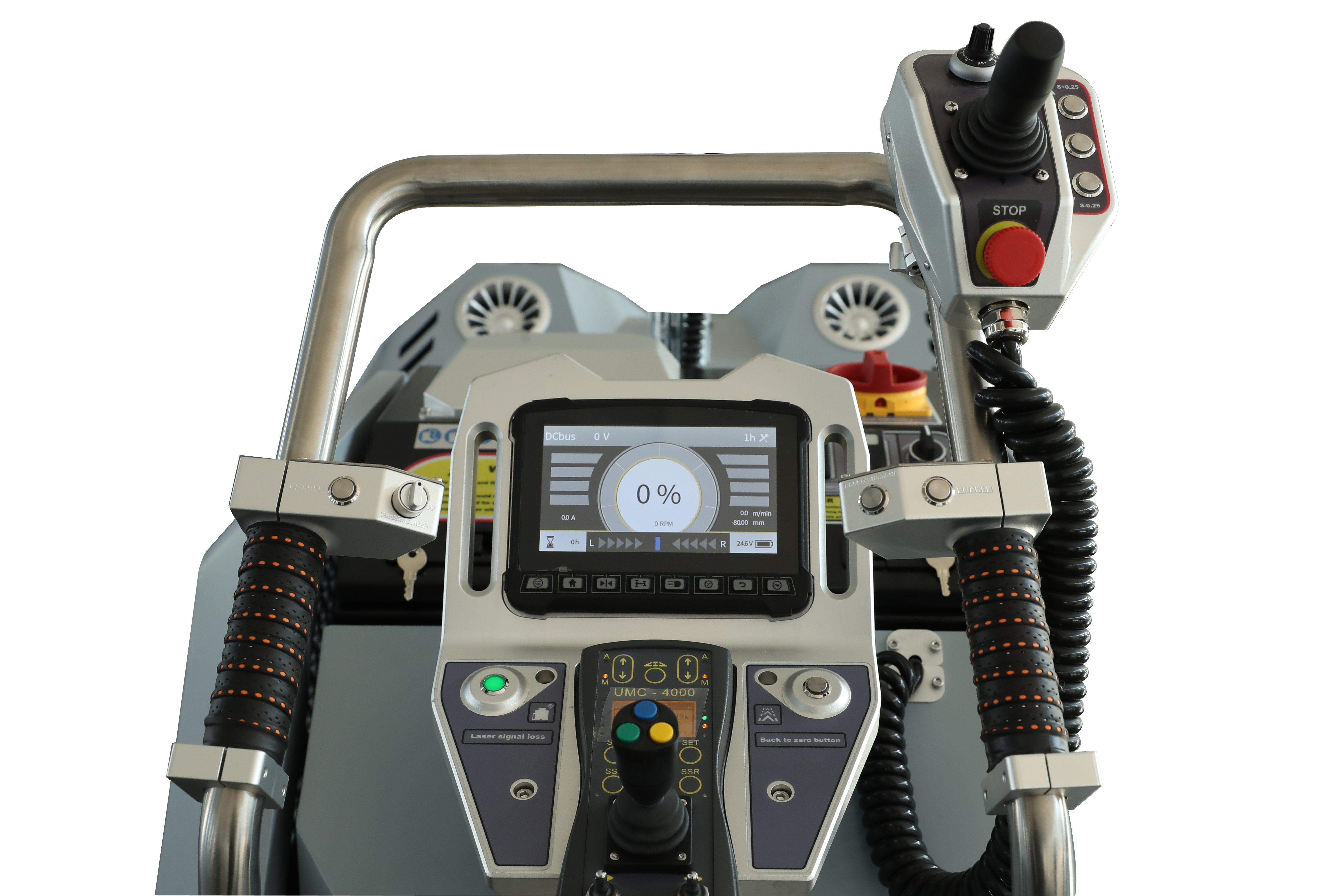

  • LASER CAMEL (Laser-controlled high-performance milling machine).

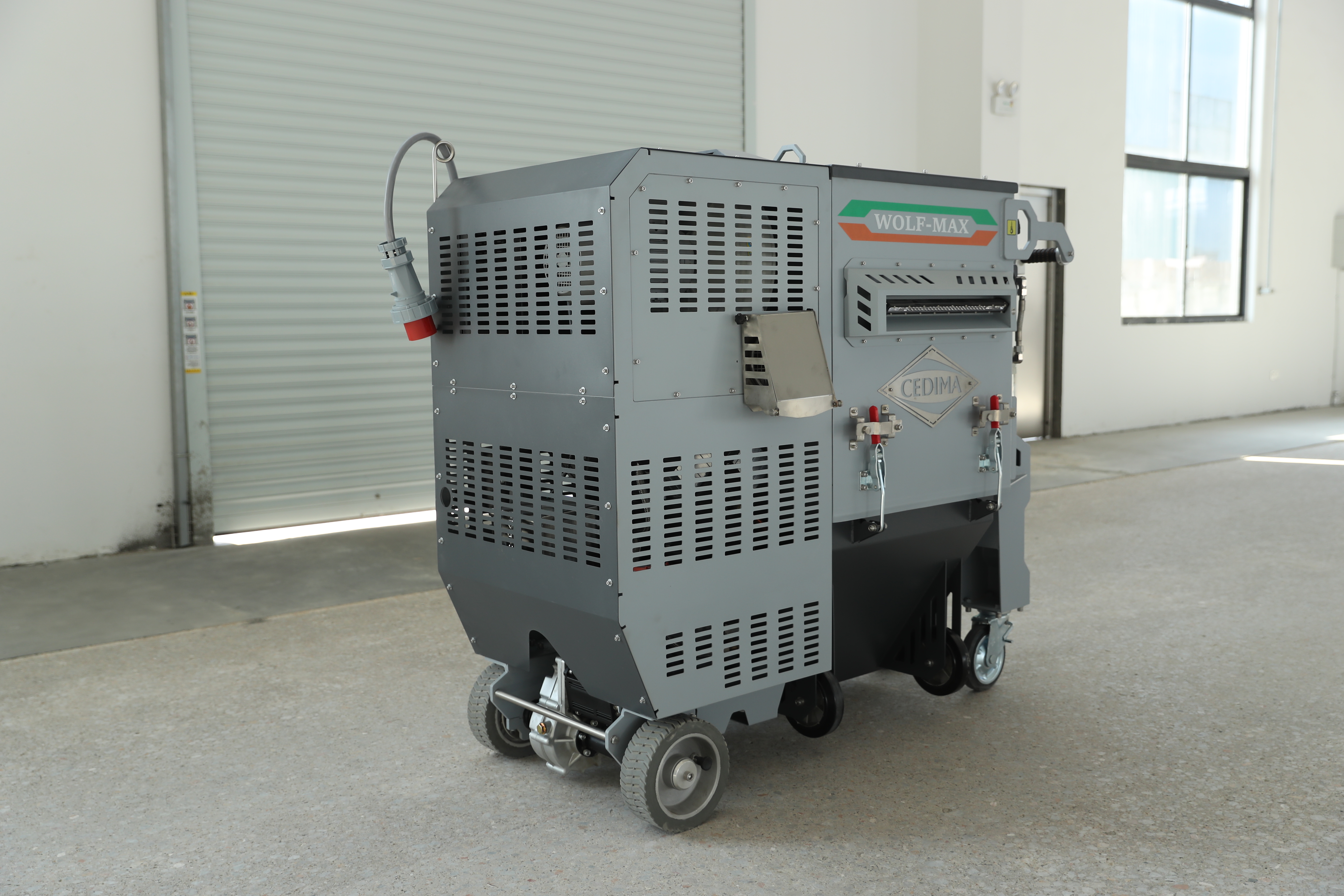

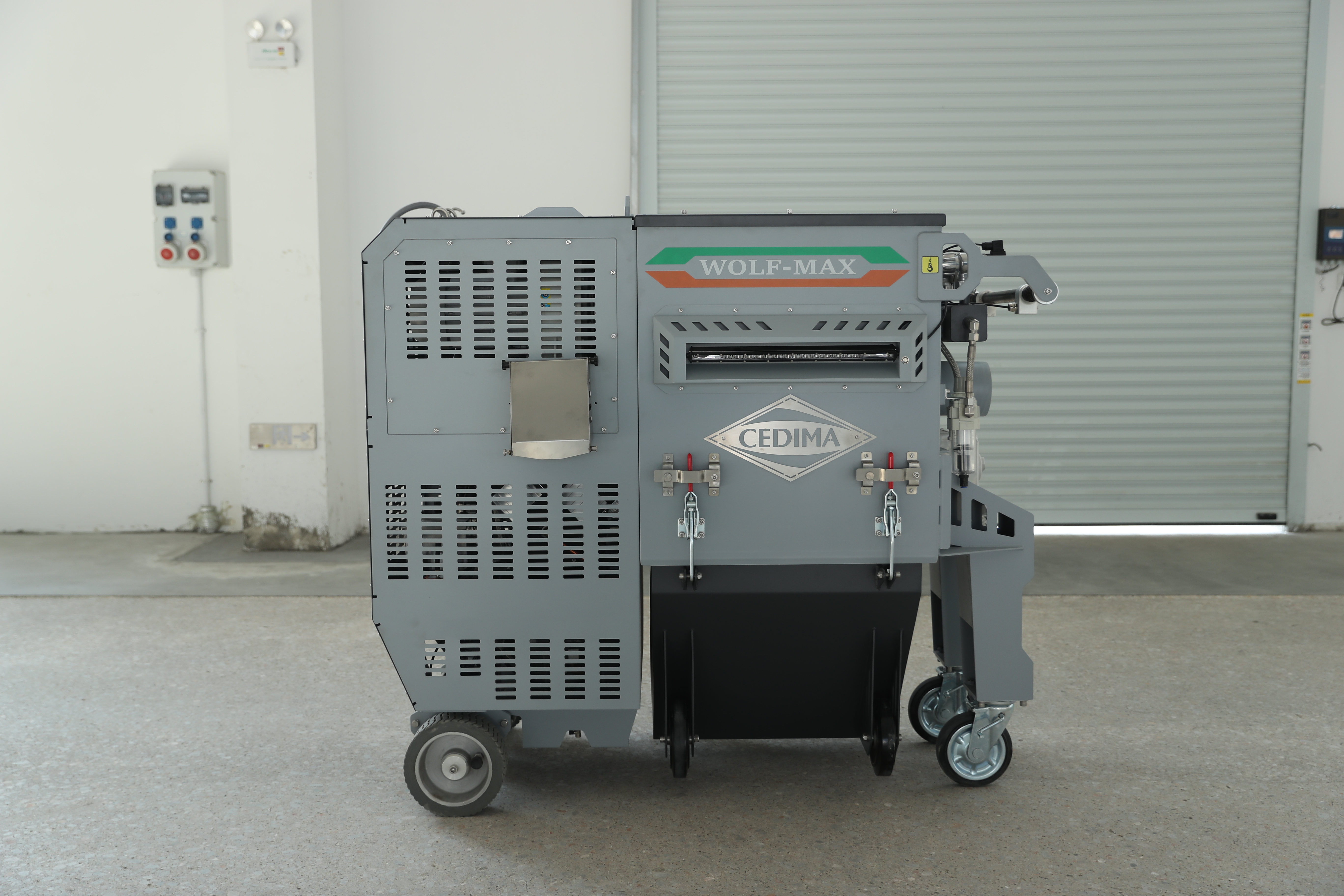

  • WOLF MAX (Self-propelled high-performance suction system).
  • DRAGONFLY (Intelligent Floor Profiler for surface measurement).
  • LLS - Laser Level System (Laser-controlled milling depth adjustment).
  • SSS - Slope Sensor System (Automatic slope control of the milling head).
  • LTGS - Laser Track Guidance System (Laser-controlled track guidance).

Accesories

  • High-performance suction system WOLF MAX.
  • Floor Profiler DRAGONFLY.
  • Metzger/McGuire fillers for repairing floor defects.
  • DRS floor grinding machines (e.g., DBS-820).
  • DRS-FLOOR concrete treatment agents (lithium-based).
  • Replacement milling drums.
  • Remote control for the suction system.
  • Mobile laser receiver for height measurement.

Technical specifications

  • Max. cutting depth:

    25 mm

  • Cutting shaft speed:

    Milling head: 180–260 rpm / Milling drum: 1,100–1,600 rpm

  • Max. mounting width:

    640 mm

  • Motor output (net):

    18,5 kW

  • Motor type:

    Electric

  • Electrical connection:

    400 V; 32–40 A; 50 Hz.

  • Cutting depth adjustment:

    Automatic via LLS (Laser Level System) or manual in 0.25 mm increments

  • Dimensions L/W/H (transport):

    1980 × 796 × 1408 mm

  • Weight:

    1160–1170 kg

  • Use with:

    WOLF MAX suction system and DRAGONFLY Floor Profiler.
