Automatic wire saw CSA-1001 H

CSA-1001 H

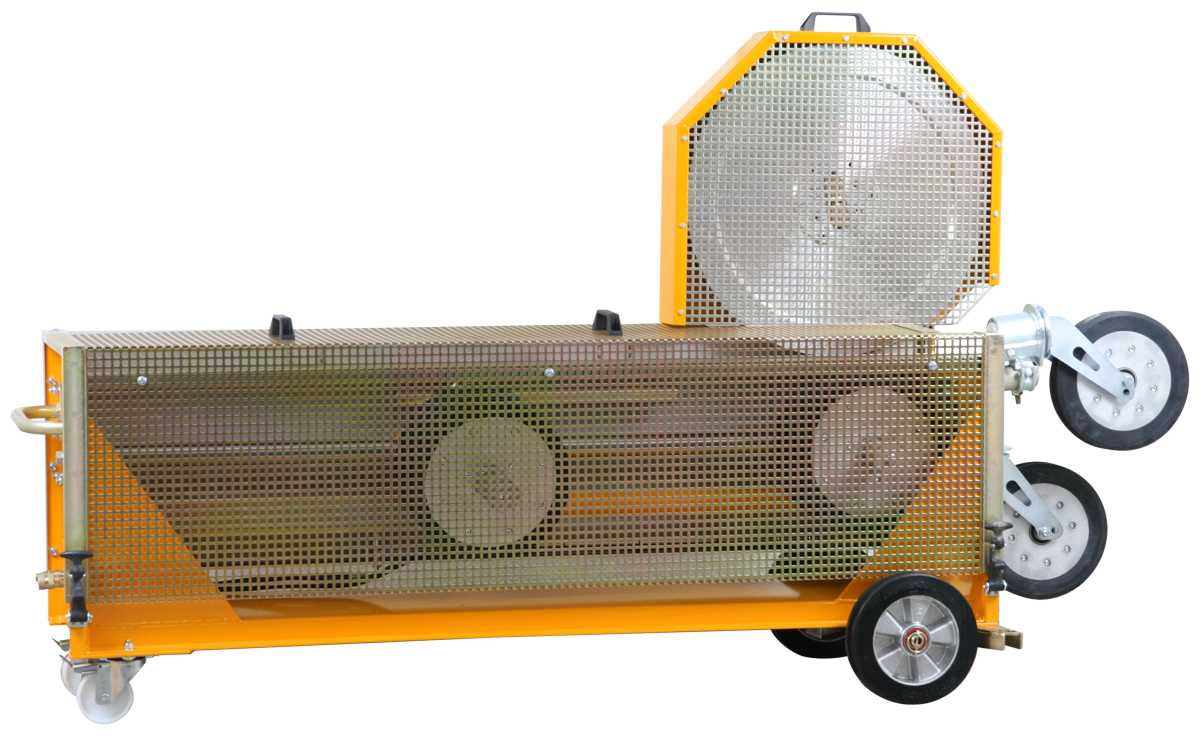

The CSA-1001 H automatic wire saw is a compact, transport-friendly rope drive unit with automatic cutting force control, ideal for the heaviest wire saw tasks, equipped with stepless rope retraction and a user-friendly control. All drives are designed with high-quality, low-interference hydraulic components. Due to the largely automatic sawing process, the operator is relieved. Sources of error due to incorrect operation are reduced to a minimum. The CSA-1001 H is characterized by a safe construction site design and particularly short set-up times. With its small dimensions, it achieves a very large usable rope storage capacity of a maximum of 21 m with 14 storage rollers. An extensive range of accessories is available.

Features & Characteristics

  • Lightweight aluminium construction
  • Durable hydraulic cylinder inside keeps the rope at a constant tension
  • Relief for the operator due to automatic feed

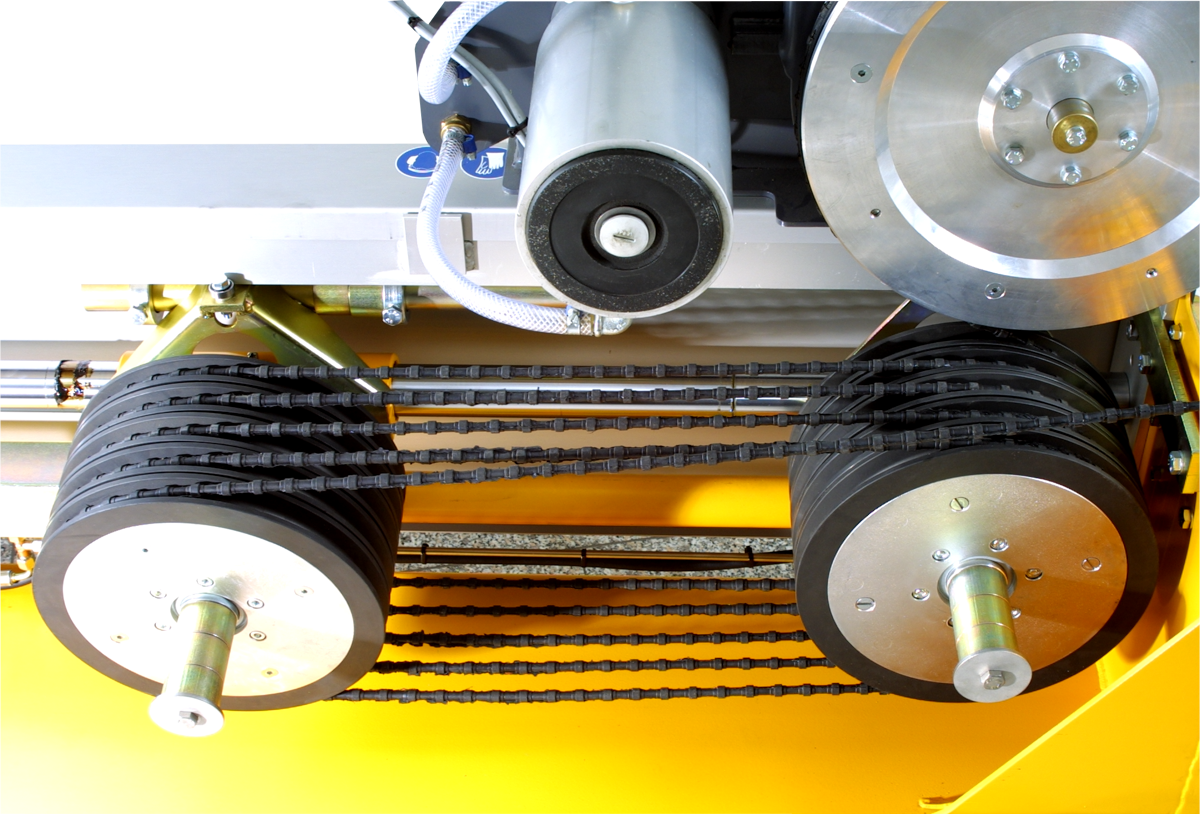

  • High-quality storage and deflection rollers made of aluminium with replaceable rubber bandages
  • Power up to 24 kW
  • Central rope entry and exit with swivel pulleys

Components

  • CSA-1001, Automatic wire saw with 2 swivel rollers and 10 storage rollers, without rope drive unit and rope drive wheel
  • Rope protection equipment

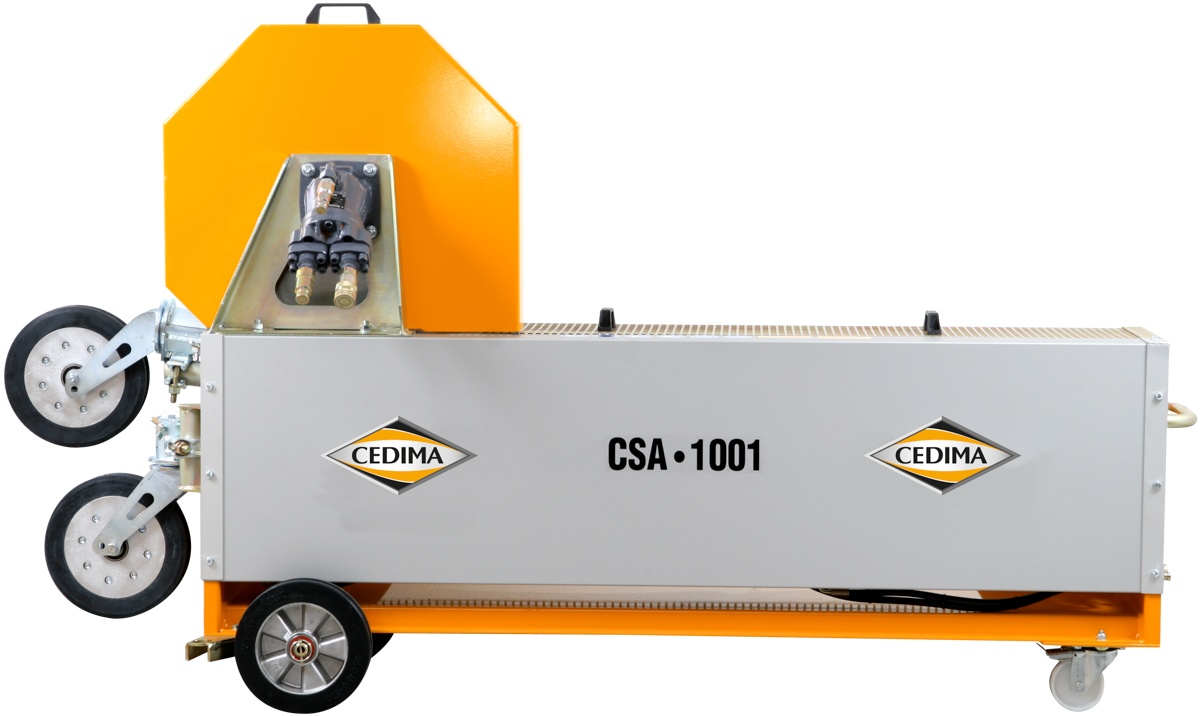

  • Rope drive unit with hydraulic motor 40cm³ and driving wheel guard
  • Rope drive wheel Ø 600 mm with replaceable drum
  • HAG-12.22, Hydraulic power unit with control panel
  • Hose packages 3-piece for driving wheel drive, 2-piece for feed

Technical specifications

  • Motor output (net):

    max. 30 kW

  • Motor type:

    Hydraulic motor

  • Dimensions L/W/H (transport):

    1950 x 600 x 550 mm

  • Weight:

    180 kg
