Green concrete conversion kit floor saws CF-2011 / CF-2015

Green concrete conversion kit CF-2011 / CF-2015

With the fresh concrete conversion kit for CEDIMA floor saws, the cutting shaft speed is adjusted for cuts in fresh concrete with a 400 mm diamond saw blade. This is necessary to ensure that the saw blade delivers the best possible cutting performance in the range of the optimum circumferential speed of approx. 50 m/s. The fresh concrete conversion kit is always supplied specifically for the respective type of floor saw.

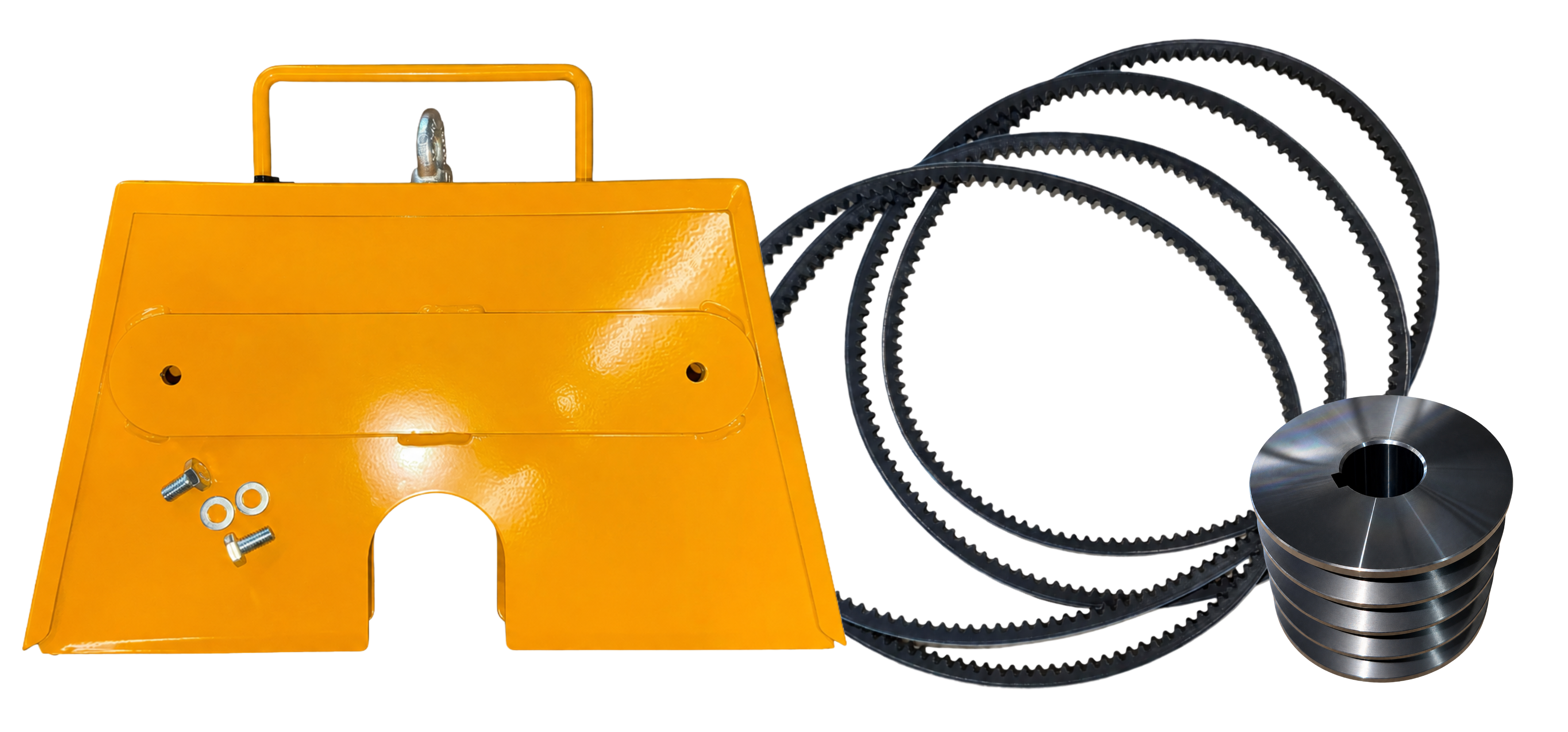

Features & Characteristics

  • Cutting Shafts Pulley
  • 1 set of V-belts / V-ribbed belts
  • Blade guard for Ø 400 mm saw blade

Technical specifications

  • Max. cutting depth:

    100 mm

  • max. Saw Blade Ø:

    400 mm

  • min. Saw Blade Ø:

    400 mm

  • Use with:

    CF-2015 B, CF-2011 EN
